Directable rotary drive chain tensioner

Directable rotary drive chain tensioner
  • Directable rotary drive chain tensioner
  • Directable rotary drive chain tensioner
  • Directable rotary drive chain tensioner
  • Directable rotary drive chain tensioner

Directable rotary drive chain tensioner

of Cd) ORIENTR
The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
Price:
from $30.03


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Directable rotary drive chain tensioner | ORIENTRAC
Code
SPROCKET
Price

Stock

Delivery

Quantity
Download-cad
3\8"x7\32"(06B1) Z21 SIMPLE

ORIENTRAC38S

3\8"x7\32"(06B1) Z21 SIMPLE
$30.03

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
3\8"x7\32"(06B2) Z21 DOUBLE

ORIENTRAC38D

3\8"x7\32"(06B2) Z21 DOUBLE
$40.04

165

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
1\2"x5\16"(08B1) Z16 SIMPLE

ORIENTRAC12S

1\2"x5\16"(08B1) Z16 SIMPLE
$30.16

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
1\2"x5\16"(08B2) Z16 DOUBLE

ORIENTRAC12D

1\2"x5\16"(08B2) Z16 DOUBLE
$42.25

165

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
5\8"x3\8"(10B1) Z17 SIMPLE

ORIENTRAC58S

5\8"x3\8"(10B1) Z17 SIMPLE
$31.98

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
5\8"x3\8"(10B2) Z17 DOUBLE

ORIENTRAC58D

5\8"x3\8"(10B2) Z17 DOUBLE
$45.11

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
3\4"x7\16"(12B1) Z15 SIMPLE

ORIENTRAC34S

3\4"x7\16"(12B1) Z15 SIMPLE
$32.89

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
3\4"x7\16"(12B2) Z15 DOUBLE

ORIENTRAC34D

3\4"x7\16"(12B2) Z15 DOUBLE
$50.96

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
1"X17m\m(16B1) Z12 SIMPLE

ORIENTRAC1S

1"X17m\m(16B1) Z12 SIMPLE
$36.92

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
1"¼ x 3\4"(20B1) Z9 SIMPLE

ORIENTRAC114S

1"¼ x 3\4"(20B1) Z9 SIMPLE
$54.21

337

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

ORIENTR with idler sprocket AC, swiveling chain drive tensioner, consisting of a lever and base in special, very sturdy aluminium alloy with tensile strength of 440MPa.360° swivel action, lever tilt every 15°, adjustable base with 60° slot.Equipped with idle chain tensioner pinion and double shielded bearings model AC.

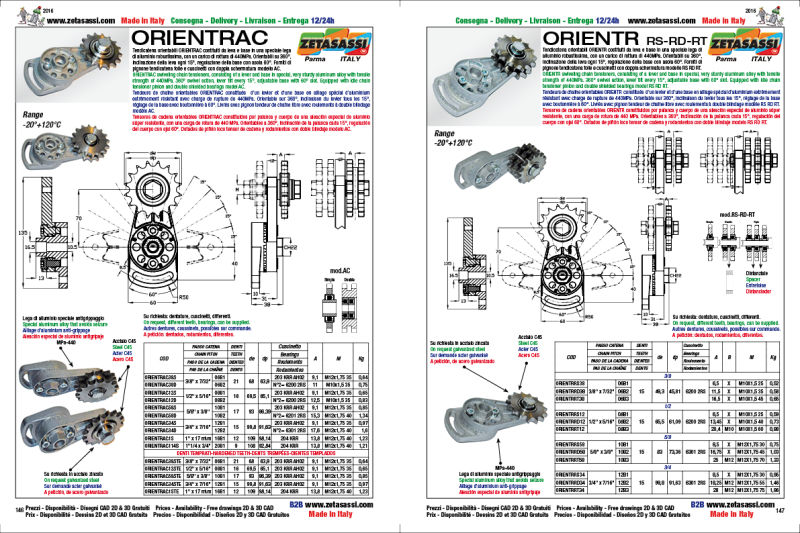

CATALOGUE PAGE

Accessories

  1. 1
    Sidler procket kit
    Sidler procket kit
    Price:
    from $10.79
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  2. 2
    Stainless steel idler sprockets
    Stainless steel idler sprockets
    Price:
    from $34.71
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  3. 3
    Idler sprocket
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  4. 4
    Hardened teeth idler sprockets
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  5. 5
    Kit for idler sprocket
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  6. 6
    Idler sprocket
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.

Similar

  1. 1
    Directable rotary tensioner
    Directable rotary tensioner
    Price:
    from $18.20
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
  2. 2
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $27.30
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  3. 3
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $28.21
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  4. 4
    Directable rotary drive belt tensioner
    Directable rotary drive belt tensioner
    Price:
    from $33.28
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
  5. 5
    Directable rotary drive belt tensioner
    Directable rotary drive belt tensioner
    Price:
    from $39.52
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
  6. 6
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $31.98
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  7. 7
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  8. 8
    Chain tensioner device
    Chain tensioner device
    Price:
    from $31.33
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  9. 9
    Chain tensioner device
    Chain tensioner device
    Price:
    from $35.10
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  10. 10
    Chain tensioner device
    Chain tensioner device
    Price:
    from $39.13
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  11. 11
    Chain tensioner device
    Chain tensioner device
    Price:
    from $41.08
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  12. 12
    Chain tensioner device
    Chain tensioner device
    Price:
    from $52.78
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  13. 13
    Chain tensioner device
    Chain tensioner device
    Price:
    from $54.73
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  14. 14
    Chain tensioner device
    Chain tensioner device
    Price:
    from $28.60
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  15. 15
    Chain tensioner device
    Chain tensioner device
    Price:
    from $30.55
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  16. 16
    Chain tensioner device
    Chain tensioner device
    Price:
    from $28.60
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  17. 17
    Chain tensioner device
    Chain tensioner device
    Price:
    from $32.37
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  18. 18
    Chain tensioner device
    Chain tensioner device
    Price:
    from $34.45
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  19. 19
    Chain tensioner device
    Chain tensioner device
    Price:
    from $32.37
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  20. 20
    Chain tensioner device
    Chain tensioner device
    Price:
    from $36.40
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  21. 21
    Chain tensioner device
    Chain tensioner device
    Price:
    from $38.35
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  22. 22
    Chain tensioner device
    Chain tensioner device
    Price:
    from $36.40
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  23. 23
    Chain tensioner device
    Chain tensioner device
    Price:
    from $50.05
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  24. 24
    Chain tensioner device
    Chain tensioner device
    Price:
    from $52.00
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  25. 25
    Chain tensioner device
    Chain tensioner device
    Price:
    from $49.14
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  26. 26
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.94
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  27. 27
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $32.89
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  28. 28
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.94
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes
  29. 29
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $29.25
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  30. 30
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $32.76
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  31. 31
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.03
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  32. 32
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $43.68
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  33. 33
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $46.02
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  34. 34
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $43.68
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  35. 35
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $43.29
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  36. 36
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $45.37
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  37. 37
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $55.12
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  38. 38
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $57.20
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  39. 39
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $41.08
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  40. 40
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $42.77
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  41. 41
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $39.26
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple.
  42. 42
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $53.69
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  43. 43
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $55.51
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  44. 44
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $51.48
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple.
  45. 45
    Arm inox chain tensioner
    Arm inox chain tensioner
    Price:
    from $94.64
    The automatic rotary tensioners TCR08 have the body and the lever made of a special anti-seize plastic material. Useful tensioning angle 60° in both sense of rotation, including the idler sprocket and bearings made stainless steel.

Datasheet

ADJUSTABLE DIRECTIONAL TENSIONERS

The directional tensioner ORIENT works like a fixed device, so it contains no spiral springs or elastomers. The absence of synthetic materials enables ORIENT to function at high temperatures.

It peculiarity lies in the fact that it can be given any orientation you wish, either before or after installation, when the slack of the belt or chain requires correction of the tensioning.

This is possible thanks to a sprocket on the base of the lever that makes it possible to assemble the two parts at every 15° of rotation for all 360° available. This means 24 positions between base and lever, plus an adjustment slot that also prevents rotation of the product.

The base and lever are produced in rugged aluminium alloy with tensile strength of 440MPa.

The base has 6 threaded holes for directional fastening to the lever, a central hole and an adjustment and antirotation slot for positioning and fastening it on the frame or plate where the element is housed.

The lever has 8 holes for variable fastening to the base and one hole for installation of various accessories. Every 15°, two holes of the base coincide with the holes on the lever, and the two parts are fastened together with two screws.This characteristic makes the product versatile and adaptable to a wide range of applications and offers numerous solutions to problems of size and positioning.

For adjustment of the product, a hexagon for a 22 mm wrench is provided at the center of the base. It is sufficient to release the antirotation slot and turn the product to reset the transmission tension. If that does not suffice, move the sprocket to the next position between the lever and the base.

It is an excellent alternative for those who do not need an automatic tensioner but, at the same time, have problems of size and positioning on the machine.

The tensioners can be supplied with chain tensioning shoes in polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient 0.06, chain tensioning pinions, belt tensioning rollers and idle pulleys.
