Directable rotary drive belt tensioner

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).

PULLEY:

MATERIAL:

Price:

from $33.28

In stock

New product

Brand - ZETASASSI®

Listing:

You Save:

(%)

Quantity	You Save
1 - 9
10 - 29	-5%
30 - 59	-10%
60	-15%

Request information by mail to ZETASASSI®
Directable rotary drive belt tensioner | ORIENTPU

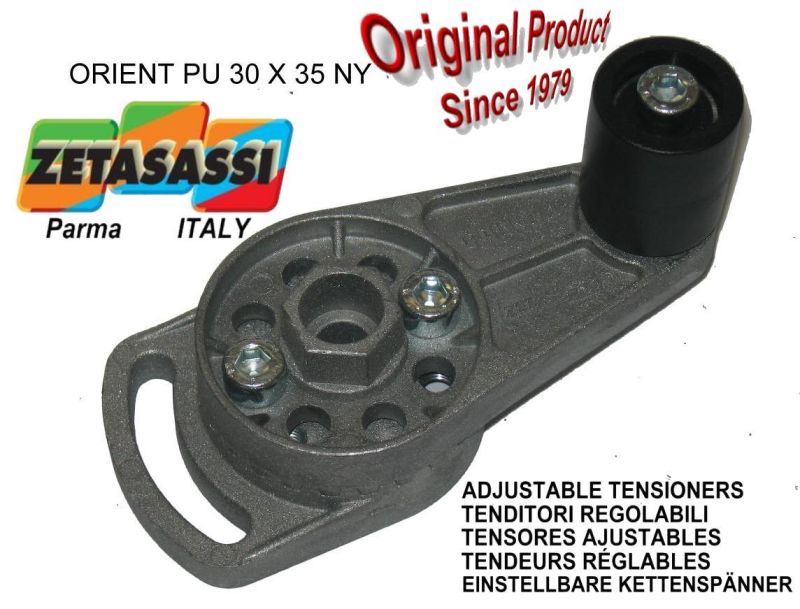

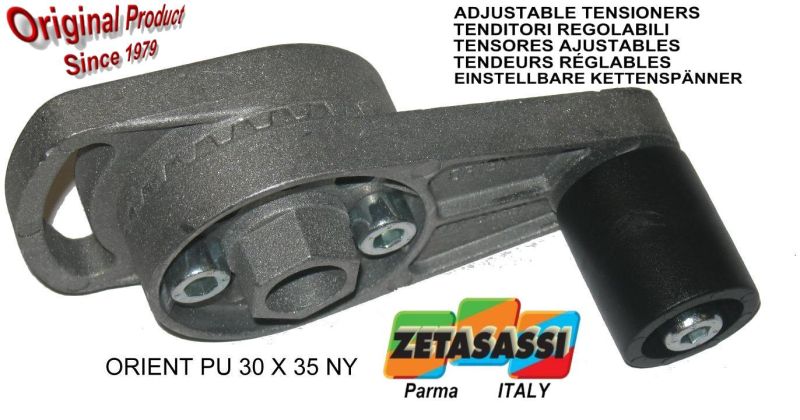

$Ø30 x L35 (m\m)$

Code:

ORIENTPU3035NY

PULLEY: Ø30 x L35 (m\m)

MATERIAL: NYLON

$33.28

487

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

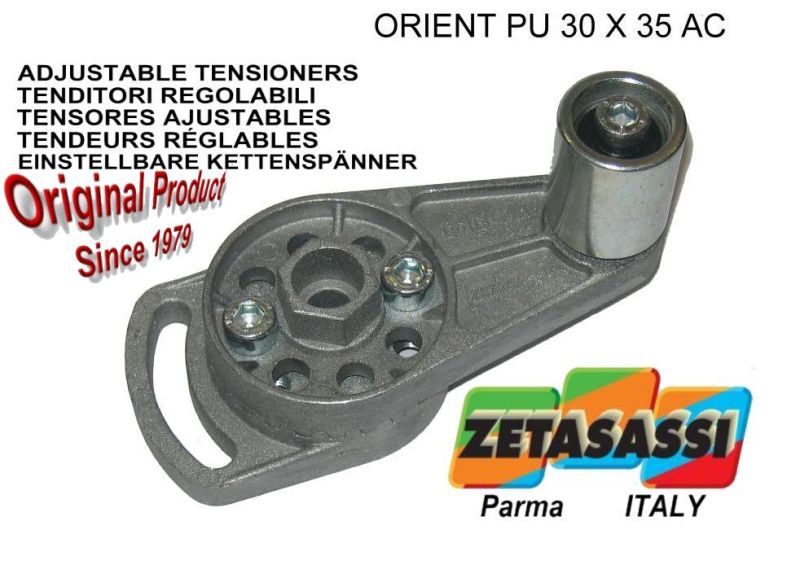

$Ø30 x L35 (m\m)$

Code:

ORIENTPU3035AC

PULLEY: Ø30 x L35 (m\m)

MATERIAL: ZINC-COATED STEEL

$36.01

487

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø30 x L35 (m\m)$

Code:

ORIENTPU3035AL

PULLEY: Ø30 x L35 (m\m)

MATERIAL: ALUMINUM

$35.62

487

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

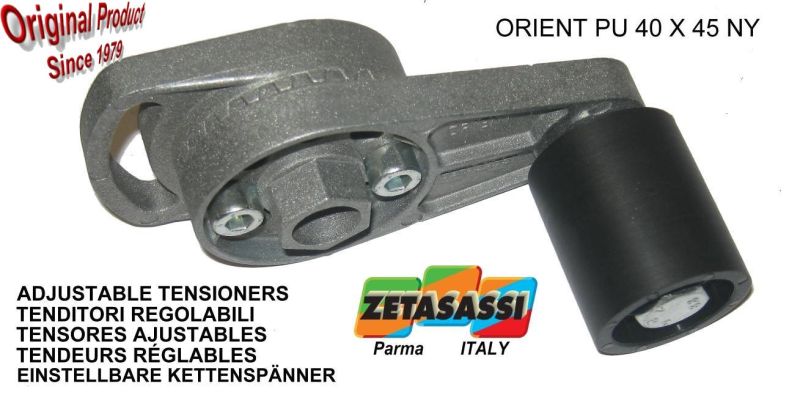

$Ø40 x L45 (m\m)$

Code:

ORIENTPU4045NY

PULLEY: Ø40 x L45 (m\m)

MATERIAL: NYLON

$35.10

471

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

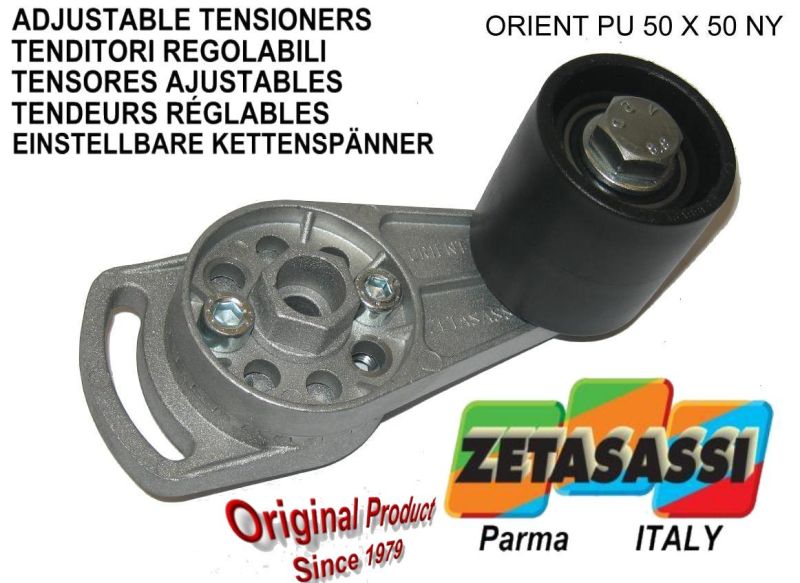

$Ø50 x L50 (m\m)$

Code:

ORIENTPU5050NY

PULLEY: Ø50 x L50 (m\m)

MATERIAL: NYLON

$35.10

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø50 x L50 (m\m)$

Code:

ORIENTPU5050AC

PULLEY: Ø50 x L50 (m\m)

MATERIAL: ZINC-COATED STEEL

$43.16

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø50 x L50 (m\m)$

Code:

ORIENTPU5050AL

PULLEY: Ø50 x L50 (m\m)

MATERIAL: ALUMINUM

$39.26

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

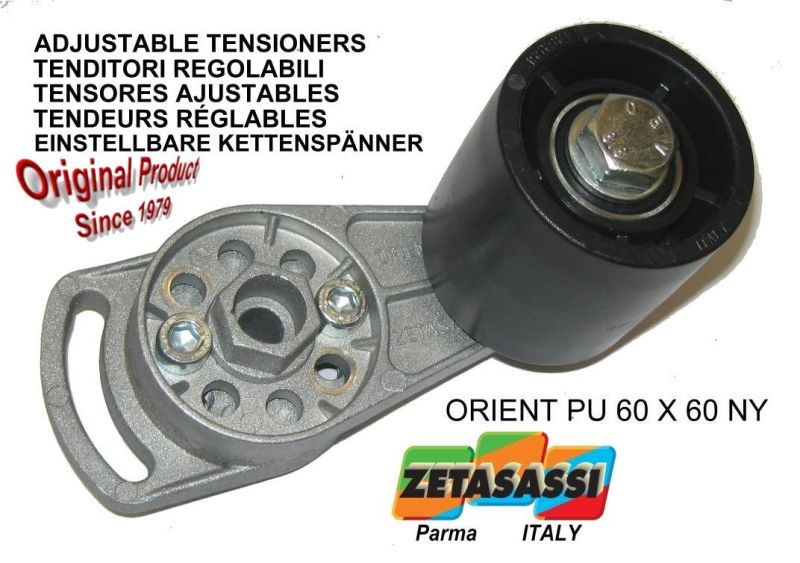

$Ø60 x L60 (m\m)$

Code:

ORIENTPU6060NY

PULLEY: Ø60 x L60 (m\m)

MATERIAL: NYLON

$39.52

481

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø60 x L60 (m\m)$

Code:

ORIENTPU6060AC

PULLEY: Ø60 x L60 (m\m)

MATERIAL: ZINC-COATED STEEL

$45.63

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø60 x L60 (m\m)$

Code:

ORIENTPU6060AL

PULLEY: Ø60 x L60 (m\m)

MATERIAL: ALUMINUM

$45.11

489

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø80 x L80 (m\m)$

Code:

ORIENTPU8080NY

PULLEY: Ø80 x L80 (m\m)

MATERIAL: NYLON

$53.30

339

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø80 x L80 (m\m)$

Code:

ORIENTPU8080AC

PULLEY: Ø80 x L80 (m\m)

MATERIAL: ZINC-COATED STEEL

$60.19

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø80 x L80 (m\m)$

Code:

ORIENTPU8080AL

PULLEY: Ø80 x L80 (m\m)

MATERIAL: ALUMINUM

$60.19

159

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø80 x L90 (m\m)$

Code:

ORIENTPU8090NY

PULLEY: Ø80 x L90 (m\m)

MATERIAL: NYLON

$57.20

396

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø80 x L90 (m\m)$

Code:

ORIENTPU8090AC

PULLEY: Ø80 x L90 (m\m)

MATERIAL: ZINC-COATED STEEL

$66.04

109

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

$Ø80 x L90 (m\m)$

Code:

ORIENTPU8090AL

PULLEY: Ø80 x L90 (m\m)

MATERIAL: ALUMINUM

$66.04

105

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Description

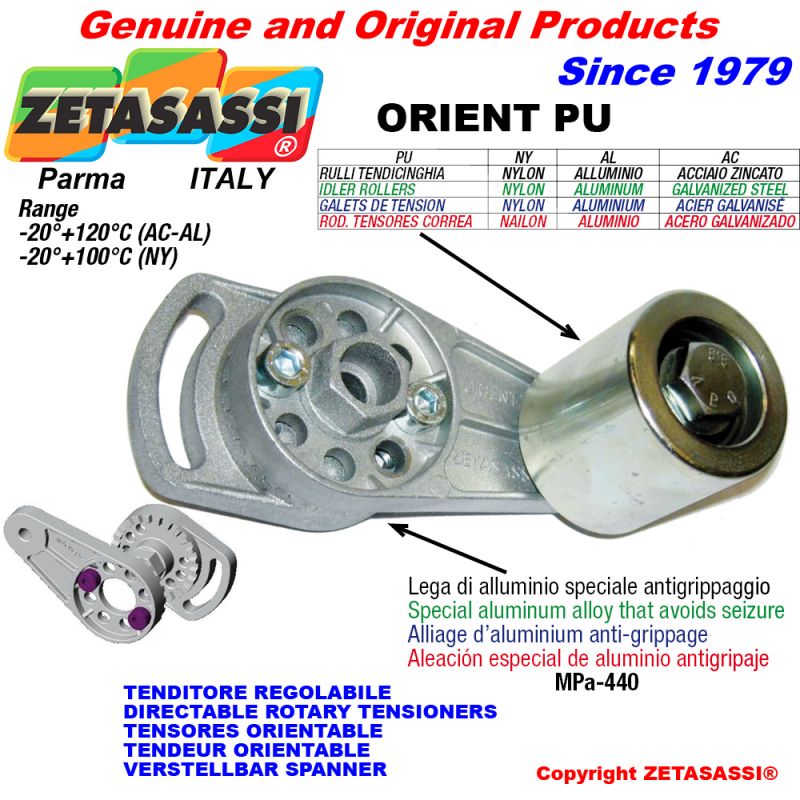

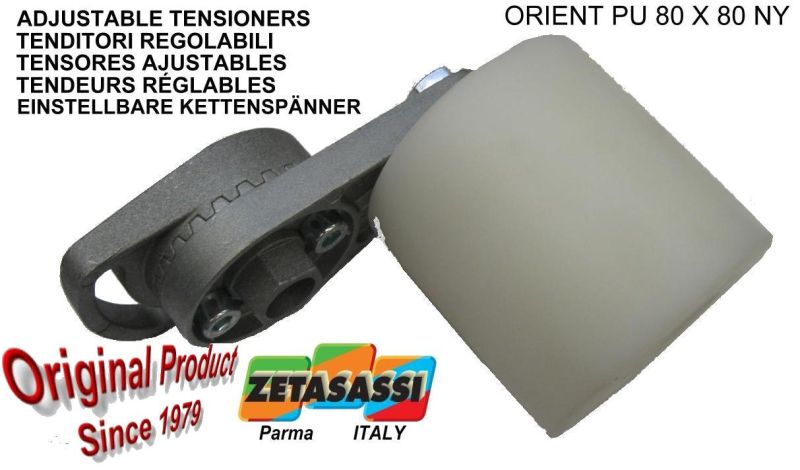

ORIENTPU with idler roller, swiveling belt drive tensioner, consisting of a lever and base in special, very sturdy aluminium alloy with tensile strength of 440MPa.360° swivel action, lever tilt every 15°, adjustable base with 60° slot.Equipped with idle belt tensioner roller with double-shielded bearings.

CATALOGUE PAGE

Accessories

1

Idler rollers steel-aluminium-nylon

Price:

from $11.44

Our IDLER ROLLERS PU can be made of Aluminium, Zinc Coated Steel and plastic material type PA6. Ø30 L 35 - Ø40 L45 – Ø40 L 50 – Ø50 L 50 - Ø50 L65 – Ø60 L60 – Ø60 L90 – Ø80 L80- Ø80 L90.
2

Rim pulley with bearings

Price:

from $17.68

type PUG rim pulley ( A) made of PA6 plastic material with double shielding bearing , protection caps and on demand you can get them in Aluminium, in Zinc-Coated Steel or Stainless Steel , various sizes and type of rim.

Similar

1

Directable rotary tensioner

Price:

from $18.20

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
2

Directable rotary drive chain tensioner

Price:

from $27.30

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
3

Directable rotary drive chain tensioner

Price:

from $28.21

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
4

Directable rotary drive belt tensioner

Price:

from $39.52

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
5

Directable rotary drive chain tensioner

Price:

from $30.03

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
6

Directable rotary drive chain tensioner

Price:

from $31.98

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
7

Directable rotary drive chain tensioner

Price:

from $30.03

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
8

Belt tensioner device

Price:

from $30.94

Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
9

Belt tensioner device

Price:

from $34.71

Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
10

Belt tensioner device

Price:

from $36.92

Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
11

Belt tensioner device

Price:

from $52.39

Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
12

Arm belt tensioner

Price:

from $32.37

Body and the lever made of a special anti-seize plastic material POM.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 75° in both sense of rotation.
13

Arm belt tensioner

Price:

from $31.72

Body and the lever/arm made of a special anti-seize light alloy.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 60° in both sense of rotation.
14

Arm belt tensioner

Price:

from $48.75

Body and the lever/arm made of a special anti-seize light alloy.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 45° in both sense of rotation.
15

Rotary arm belt tensioner

Price:

from $42.25

The type TR1PU have a light alloy body and galvanized steel lever/arm and a idler rollers. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
16

Rotary arm belt tensioner

Price:

from $55.51

The type TR2PU have a light alloy body and galvanized steel lever/arm and a idler rollers. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.

Datasheet

ADJUSTABLE DIRECTIONAL TENSIONERS

The directional tensioner ORIENT works like a fixed device, so it contains no spiral springs or elastomers. The absence of synthetic materials enables ORIENT to function at high temperatures.

It peculiarity lies in the fact that it can be given any orientation you wish, either before or after installation, when the slack of the belt or chain requires correction of the tensioning.

This is possible thanks to a sprocket on the base of the lever that makes it possible to assemble the two parts at every 15° of rotation for all 360° available. This means 24 positions between base and lever, plus an adjustment slot that also prevents rotation of the product.

The base and lever are produced in rugged aluminium alloy with tensile strength of 440MPa.

The base has 6 threaded holes for directional fastening to the lever, a central hole and an adjustment and antirotation slot for positioning and fastening it on the frame or plate where the element is housed.

The lever has 8 holes for variable fastening to the base and one hole for installation of various accessories. Every 15°, two holes of the base coincide with the holes on the lever, and the two parts are fastened together with two screws.This characteristic makes the product versatile and adaptable to a wide range of applications and offers numerous solutions to problems of size and positioning.

For adjustment of the product, a hexagon for a 22 mm wrench is provided at the center of the base. It is sufficient to release the antirotation slot and turn the product to reset the transmission tension. If that does not suffice, move the sprocket to the next position between the lever and the base.

It is an excellent alternative for those who do not need an automatic tensioner but, at the same time, have problems of size and positioning on the machine.

The tensioners can be supplied with chain tensioning shoes in polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient 0.06, chain tensioning pinions, belt tensioning rollers and idle pulleys.
