Rotary arm chain tensioner

of Bh) TRB

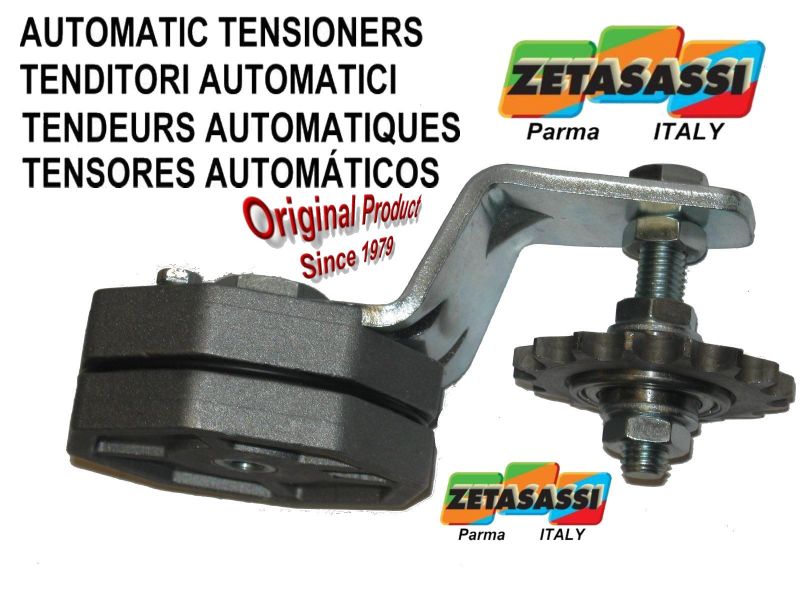

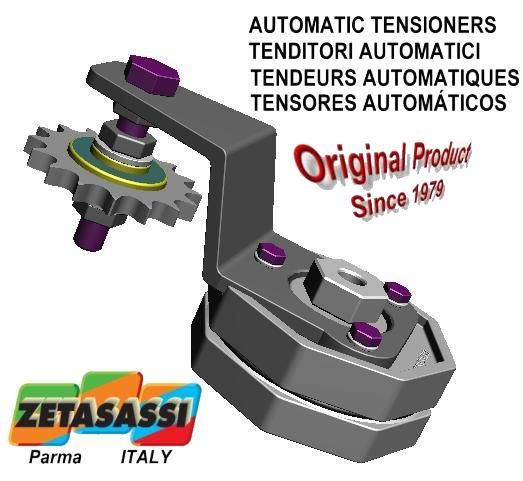

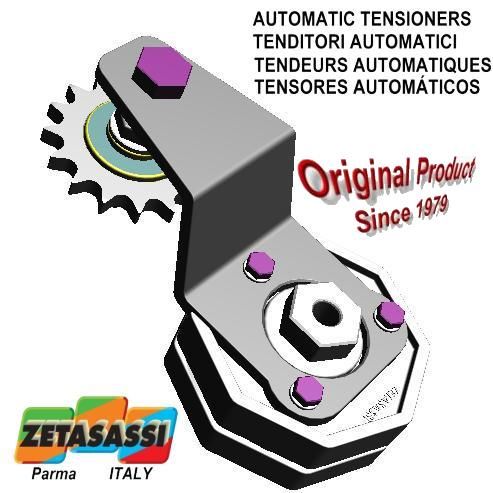

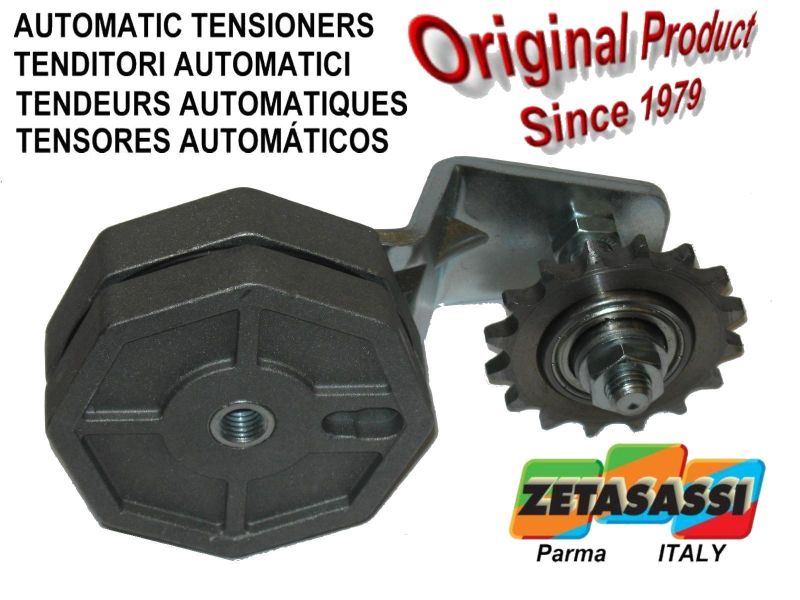

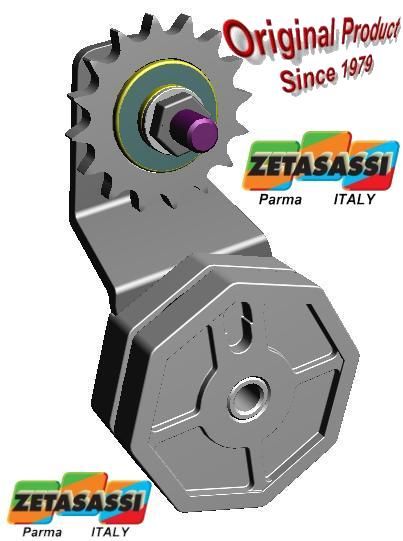

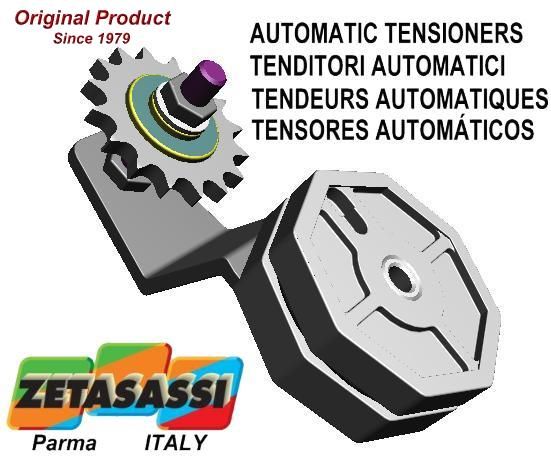

The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
Price:
from $57.20


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Rotary arm chain tensioner | TRB2TE
Code
LEVER
SPROCKET
Price

Stock

Delivery

Quantity
Download-cad

TRB2218AC38STE

218 (Newton 120:480)
3\8"x7\32"(06B1) Z21 SIMPLE
$57.20

62

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2218AC12STE

218 (Newton 120:480)
1\2"x5\16"(08B1) Z16 SIMPLE
$57.33

62

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2218AC58STE

218 (Newton 120:480)
5\8"x3\8"(10B1) Z17 SIMPLE
$59.54

62

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2227AC38STE

227 (Newton 120:380)
3\8"x7\32"(06B1) Z21 SIMPLE
$57.46

218

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2227AC12STE

227 (Newton 120:380)
1\2"x5\16"(08B1) Z16 SIMPLE
$57.72

218

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2227AC58STE

227 (Newton 120:380)
5\8"x3\8"(10B1) Z17 SIMPLE
$59.93

218

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2227AC34STE

227 (Newton 120:380)
3\4"x7\16"(12B1) Z15 SIMPLE
$60.45

218

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB2227AC1STE

227 (Newton 120:380)
1"X17m\m(16B1) Z12 SIMPLE
$65.13

218

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

TRB2 with hardened idler sprocket ACTE, automatic device rotating spring-action chain arm tensioners consisting of two base elements in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa, equipped with interchangeable lever in galvanized steel.The internal and external gaskets prevent any infiltrations.  Tensioning angle 45° in both directions of rotation.Equipped with idle chain tensioner pinion and double shielded bearings.

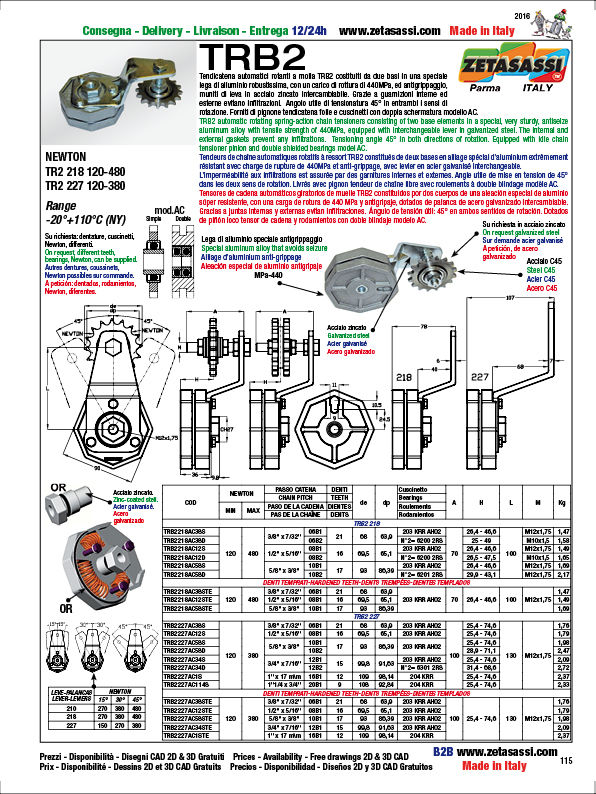

CATALOGUE PAGE

Accessories

  1. 1
    Lever for tr2 tensioner
    Lever for tr2 tensioner
    Price:
    from $9.62
    The versatility of the TR models is due to the possibility to change the load lever so as to reach any height without losing in rigidity. They have interchangeable 110,111,115,118 levers for the type 1 and 210,218,227 levers for the type 2.
  2. 2
    Sidler procket kit
    Sidler procket kit
    Price:
    from $10.79
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  3. 3
    Stainless steel idler sprockets
    Stainless steel idler sprockets
    Price:
    from $34.71
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  4. 4
    Brackets for tc & tr rotary tensioners
    Brackets for tc & tr rotary tensioners
    Price:
    from $8.71
    Supporting brackets in galvanized steel for rotating spring-action tensioners model TC and TR.
  5. 5
    Tc & tr rotary tensioner preloading
    Tc & tr rotary tensioner preloading
    Price:
    from $13.26
    Preloads and antirotation safety systems in galvanized steel for rotating spring-actions tensioners model TC & TR, equipped with blocking dowels.To be used when installing the tensioners on imperfect or irregular surfaces.
  6. 6
    Idler sprocket
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  7. 7
    Hardened teeth idler sprockets
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  8. 8
    Kit for idler sprocket
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  9. 9
    Idler sprocket
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.

Similar

  1. 1
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  2. 2
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $31.98
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  3. 3
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  4. 4
    Chain tensioner device
    Chain tensioner device
    Price:
    from $31.33
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  5. 5
    Chain tensioner device
    Chain tensioner device
    Price:
    from $35.10
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  6. 6
    Chain tensioner device
    Chain tensioner device
    Price:
    from $39.13
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  7. 7
    Chain tensioner device
    Chain tensioner device
    Price:
    from $41.08
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  8. 8
    Chain tensioner device
    Chain tensioner device
    Price:
    from $52.78
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  9. 9
    Chain tensioner device
    Chain tensioner device
    Price:
    from $54.73
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  10. 10
    Chain tensioner device
    Chain tensioner device
    Price:
    from $28.60
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  11. 11
    Chain tensioner device
    Chain tensioner device
    Price:
    from $30.55
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  12. 12
    Chain tensioner device
    Chain tensioner device
    Price:
    from $28.60
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  13. 13
    Chain tensioner device
    Chain tensioner device
    Price:
    from $32.37
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  14. 14
    Chain tensioner device
    Chain tensioner device
    Price:
    from $34.45
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  15. 15
    Chain tensioner device
    Chain tensioner device
    Price:
    from $32.37
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  16. 16
    Chain tensioner device
    Chain tensioner device
    Price:
    from $36.40
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  17. 17
    Chain tensioner device
    Chain tensioner device
    Price:
    from $38.35
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  18. 18
    Chain tensioner device
    Chain tensioner device
    Price:
    from $36.40
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  19. 19
    Chain tensioner device
    Chain tensioner device
    Price:
    from $50.05
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  20. 20
    Chain tensioner device
    Chain tensioner device
    Price:
    from $52.00
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  21. 21
    Chain tensioner device
    Chain tensioner device
    Price:
    from $49.14
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  22. 22
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.94
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  23. 23
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $32.89
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  24. 24
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.94
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes
  25. 25
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $29.25
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  26. 26
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $32.76
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  27. 27
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.03
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  28. 28
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $43.68
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  29. 29
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $46.02
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  30. 30
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $43.68
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  31. 31
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $43.29
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  32. 32
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $45.37
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  33. 33
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $55.12
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  34. 34
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $41.08
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  35. 35
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $42.77
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  36. 36
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $39.26
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple.
  37. 37
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $53.69
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  38. 38
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $55.51
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  39. 39
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $51.48
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple.
  40. 40
    Arm inox chain tensioner
    Arm inox chain tensioner
    Price:
    from $94.64
    The automatic rotary tensioners TCR08 have the body and the lever made of a special anti-seize plastic material. Useful tensioning angle 60° in both sense of rotation, including the idler sprocket and bearings made stainless steel.

Datasheet

AUTOMATIC ROTATING / ROTARY TENSIONERS – CHAIN TENSIONERS – BELT TENSIONERS

Our TR model belt tensioners, chain tensioners and rotary chain tensioners were developed in 1992, first in the world for the construction of rotating chain tensions using helical springs, third in the world and first in Italy in the construction and design of automatic tensioners in general.

We can create special levers for any function, for example the interchangeable lever serves to access different heights, i.e. operate on several working levels without losing rigidity, and other levers to suit particular needs.

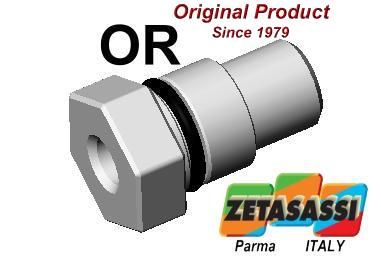

Internally and externally our tensioners are equipped with O-rings that guarantee excellent watertightness so that they can be used in environments where dirt, humidity, etc. could be a problem.

The two bases are made of a special aluminium antiseize alloy that is very sturdy, with tensile strength of 440MPa, and the device as a whole is particularly robust and long lasting thanks to the specifications of the material, for a product of absolute excellence in the field.

Thanks to the fact that we machine all the parts in-house with our CNC equipment, we have a very high level of quality control.

We remind you that the TR model rotary tensioners are pre-lubricated.

In addition to their function, our tensioners can also be used as pressing units, shock absorbers, stabilizers, etc.

Thanks to the fact that these products are entirely produced in our company, we can make specific alterations for every product, also to drawings.

Examples:

levers to drawings and/or modified;

chain tensioner shoes to drawings and/or modified;

standard limit switches or proximity sensors;

modified loading of springs;

belt tensioner rollers to drawings;

chain tensioner pinions outside of catalogue;

etc.

We have a vast warehouse and a fleet of the latest generation of CNC machines, specialized personnel with over 40 years’ experience in the sector.

The heart of the machine is its transmission, and we take care of it with the best products and quality Made in Italy.

For any other information you may need regarding our products, don’t hesitate to contact us. We’ll be able to indicate the right product for your needs.
