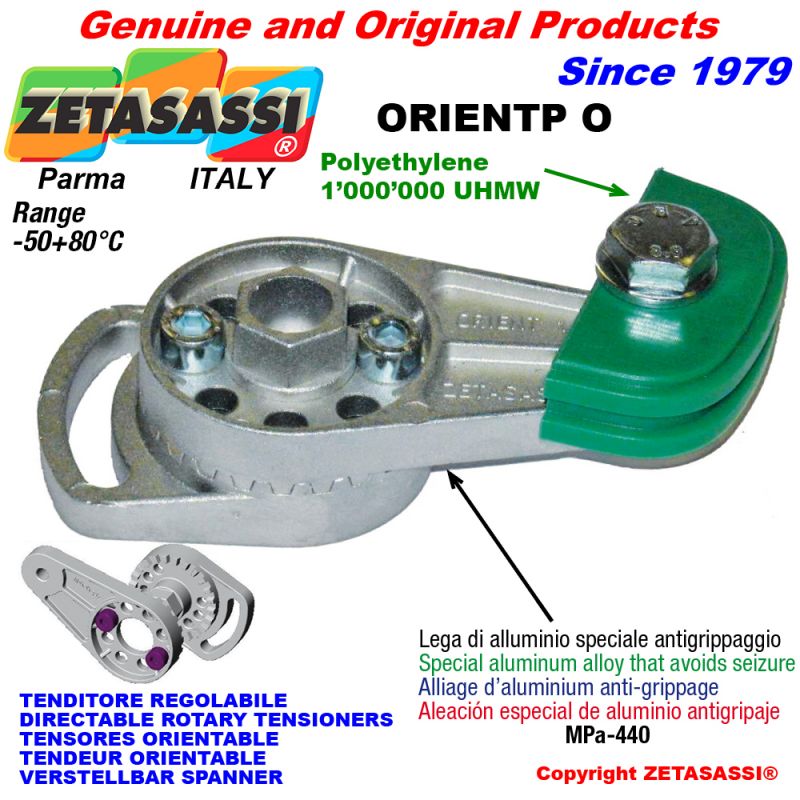

Directable rotary drive chain tensioner

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.

CHAIN:

Price:

from $27.30

In stock

New product

Brand - ZETASASSI®

Listing:

You Save:

(%)

Quantity	You Save
1 - 9
10 - 29	-5%
30 - 59	-10%
60	-15%

Request information by mail to ZETASASSI®
Directable rotary drive chain tensioner | ORIENTPO

Code:

ORIENTPOU

CHAIN: 8x3 3/8" 1/2" SIMPLE

$27.82

353

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO38S

CHAIN: 3\8"x7\32"(06B1) SIMPLE

$27.30

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO38D

CHAIN: 3\8"x7\32"(06B2) DOUBLE

$27.30

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO12S

CHAIN: 1\2"x5\16"(08B1) SIMPLE

$27.30

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO12D

CHAIN: 1\2"x5\16"(08B2) DOUBLE

$27.30

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO58S

CHAIN: 5\8"x3\8"(10B1) SIMPLE

$29.25

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO58D

CHAIN: 5\8"x3\8"(10B2) DOUBLE

$31.85

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO34S

CHAIN: 3\4"x7\16"(12B1) SIMPLE

$29.25

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO34D

CHAIN: 3\4"x7\16"(12B2) DOUBLE

$32.63

356

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO1S

CHAIN: 1"X17m\m(16B1) SIMPLE

$33.28

519

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO114S

CHAIN: 1"¼ x 3\4"(20B1) SIMPLE

$33.28

511

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPO112S

CHAIN: 1"½ X 1"(24B1) SIMPLE

$33.28

156

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA35S

CHAIN: ASA35(06C1) SIMPLE

$28.99

250

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA35D

CHAIN: ASA35(06C2) DOUBLE

$28.99

200

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA40S

CHAIN: ASA40(08A1) SIMPLE

$29.90

221

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA40D

CHAIN: ASA40(08A2) DOUBLE

$32.24

190

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA50S

CHAIN: ASA50(10A1) SIMPLE

$31.98

550

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA50D

CHAIN: ASA50(10A2) DOUBLE

$34.71

178

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA60S

CHAIN: ASA60(12A1) SIMPLE

$31.98

121

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA80S

CHAIN: ASA80(16A1) SIMPLE

$37.44

507

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA100S

CHAIN: ASA100(20A1) SIMPLE

$37.44

477

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

ORIENTPOASA120S

CHAIN: ASA120(24A1) SIMPLE

$37.44

100

15 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Description

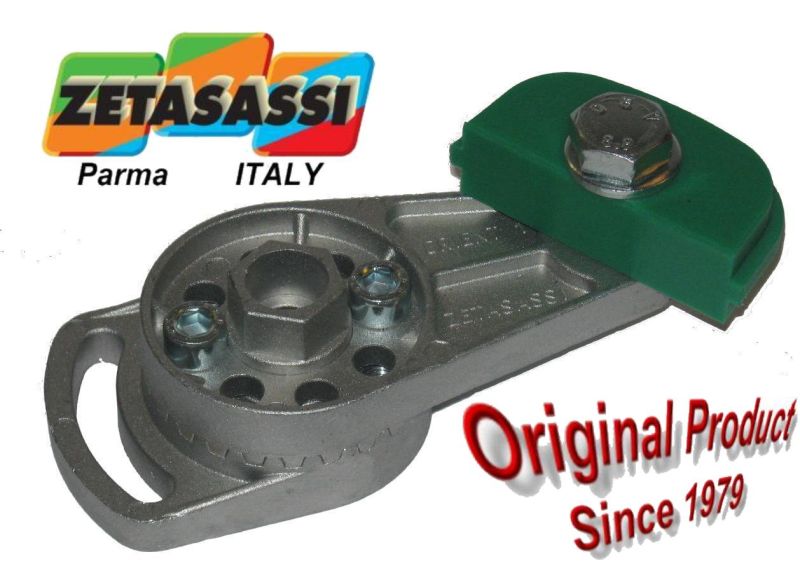

ORIENTP with chain slider oval head, swiveling chain drive tensioner, consisting of a lever and base in special, very sturdy aluminium alloy with tensile strength of 440MPa.360° swivel action, lever tilt every 15°, adjustable base with 60° slot.Equipped with chain tensioning shoe in polyethylene 1,000,000 UHMW.

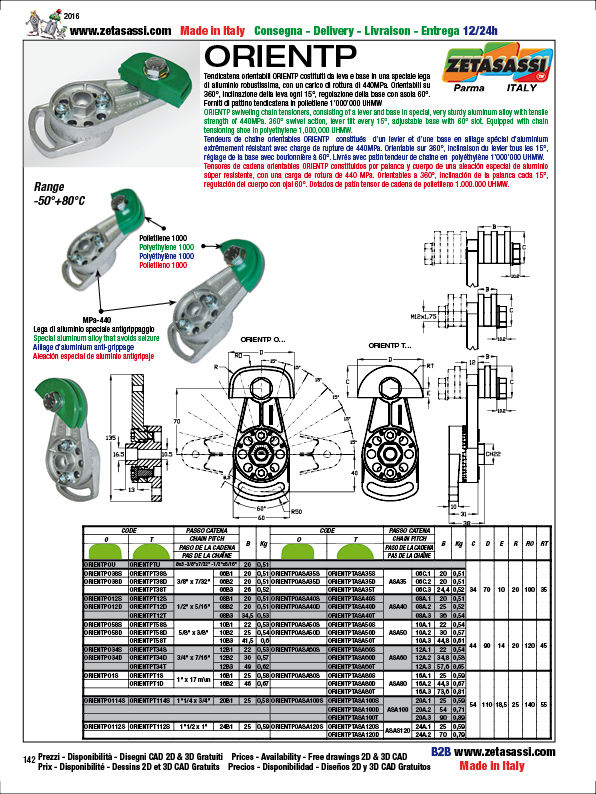

CATALOGUE PAGE

Accessories

1

Chain slider

Price:

from $10.14

The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
2

Chain slider

Price:

from $5.46

The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
3

Chain slider

Price:

from $12.61

The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
4

Chain slider

Price:

from $6.37

The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
5

Chain slider kit

Price:

from $10.14

PE 1000 UHMW Chain slider, icluded bolt and nut. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"
6

Chain slider

Price:

from $6.24

PE 1000 UHMW Chain slider. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"

Similar

1

Directable rotary tensioner

Price:

from $18.20

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
2

Directable rotary drive chain tensioner

Price:

from $28.21

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
3

Directable rotary drive belt tensioner

Price:

from $33.28

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
4

Directable rotary drive belt tensioner

Price:

from $39.52

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
5

Directable rotary drive chain tensioner

Price:

from $30.03

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
6

Directable rotary drive chain tensioner

Price:

from $31.98

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
7

Directable rotary drive chain tensioner

Price:

from $30.03

The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
8

Chain tensioner device

Price:

from $27.43

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
9

Chain tensioner device

Price:

from $28.34

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
10

Chain tensioner device

Price:

from $31.33

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
11

Chain tensioner device

Price:

from $32.37

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
12

Chain tensioner device

Price:

from $35.49

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
13

Chain tensioner device

Price:

from $36.40

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
14

Chain tensioner device

Price:

from $55.64

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
15

Chain tensioner device

Price:

from $57.46

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
16

Arm chain tensioner

Price:

from $28.21

Plastic material POM body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 75° in both sense of rotation
17

Arm chain tensioner

Price:

from $29.12

Plastic material POM body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 75° in both sense of rotation
18

Arm chain tensioner

Price:

from $29.25

Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 60° in both sense of rotation.
19

Arm chain tensioner

Price:

from $30.03

Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 60° in both sense of rotation.
20

Arm chain tensioner

Price:

from $42.64

Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 45° in both sense of rotation.
21

Arm chain tensioner

Price:

from $43.29

Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 45° in both sense of rotation.
22

Rotary arm chain tensioner

Price:

from $38.61

Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.
23

Rotary arm chain tensioner

Price:

from $39.52

Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.
24

Rotary arm chain tensioner

Price:

from $53.69

Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.
25

Rotary arm chain tensioner

Price:

from $54.73

Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.

Datasheet

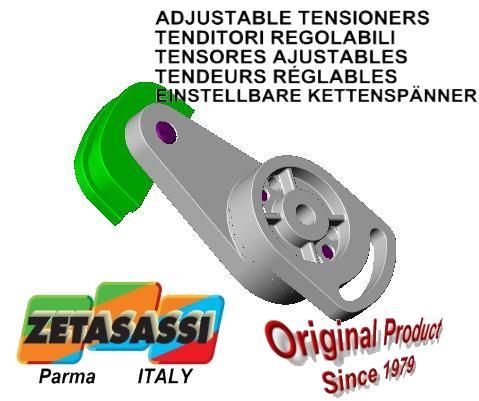

ADJUSTABLE DIRECTIONAL TENSIONERS

The directional tensioner ORIENT works like a fixed device, so it contains no spiral springs or elastomers. The absence of synthetic materials enables ORIENT to function at high temperatures.

It peculiarity lies in the fact that it can be given any orientation you wish, either before or after installation, when the slack of the belt or chain requires correction of the tensioning.

This is possible thanks to a sprocket on the base of the lever that makes it possible to assemble the two parts at every 15° of rotation for all 360° available. This means 24 positions between base and lever, plus an adjustment slot that also prevents rotation of the product.

The base and lever are produced in rugged aluminium alloy with tensile strength of 440MPa.

The base has 6 threaded holes for directional fastening to the lever, a central hole and an adjustment and antirotation slot for positioning and fastening it on the frame or plate where the element is housed.

The lever has 8 holes for variable fastening to the base and one hole for installation of various accessories. Every 15°, two holes of the base coincide with the holes on the lever, and the two parts are fastened together with two screws.This characteristic makes the product versatile and adaptable to a wide range of applications and offers numerous solutions to problems of size and positioning.

For adjustment of the product, a hexagon for a 22 mm wrench is provided at the center of the base. It is sufficient to release the antirotation slot and turn the product to reset the transmission tension. If that does not suffice, move the sprocket to the next position between the lever and the base.

It is an excellent alternative for those who do not need an automatic tensioner but, at the same time, have problems of size and positioning on the machine.

The tensioners can be supplied with chain tensioning shoes in polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient 0.06, chain tensioning pinions, belt tensioning rollers and idle pulleys.
