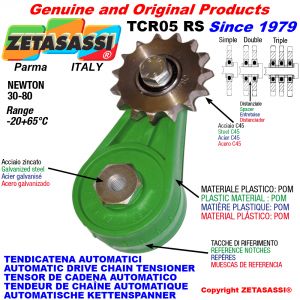

Arm chain tensioner

Arm chain tensioner
  • Arm chain tensioner
  • Arm chain tensioner
  • Arm chain tensioner

Arm chain tensioner

of Bd) TCR
They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes
Price:
from $30.94


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Arm chain tensioner | TCR05RSRDRT
Code
NEWTON
SPROCKET
Price

Stock

Delivery

Quantity
Download-cad

TCR05RS38

30-80
3\8"x7\32"(06B1) Z15 SIMPLE
$30.94

781

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

TCR05RS12

30-80
1\2"x5\16"(08B1) Z15 SIMPLE
$31.85

781

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

TCR05 with idler sprocket RS RD RT,automatic rotating spring-action chain arm tensioners consisting of a base and lever in POM plastic material.Tensioning angle 75° in both directions of rotation.Equipped with idle chain tensioner pinion and double shielded bearings.

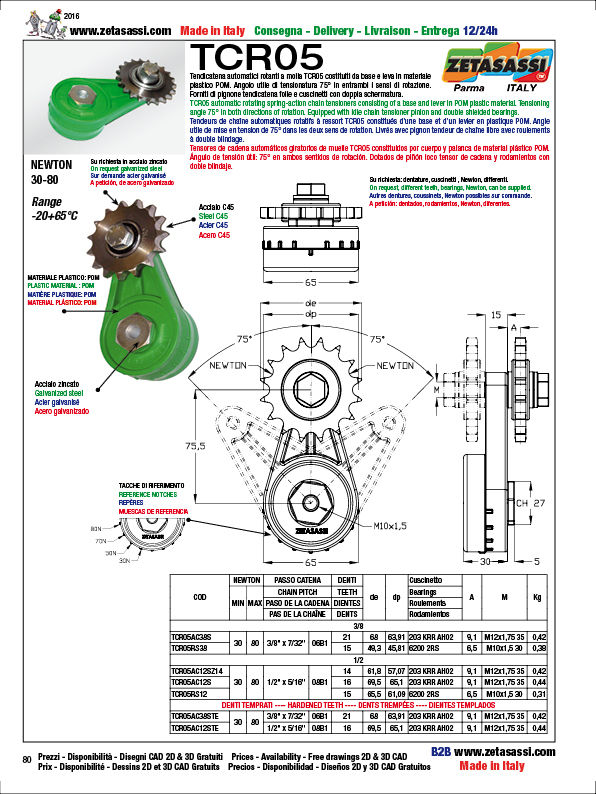

CATALOGUE PAGE

Accessories

  1. 1
    Sidler procket kit
    Sidler procket kit
    Price:
    from $10.79
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  2. 2
    Stainless steel idler sprockets
    Stainless steel idler sprockets
    Price:
    from $34.71
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  3. 3
    Brackets for tc & tr rotary tensioners
    Brackets for tc & tr rotary tensioners
    Price:
    from $8.71
    Supporting brackets in galvanized steel for rotating spring-action tensioners model TC and TR.
  4. 4
    Tc & tr rotary tensioner preloading
    Tc & tr rotary tensioner preloading
    Price:
    from $13.26
    Preloads and antirotation safety systems in galvanized steel for rotating spring-actions tensioners model TC & TR, equipped with blocking dowels.To be used when installing the tensioners on imperfect or irregular surfaces.
  5. 5
    Idler sprocket
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  6. 6
    Hardened teeth idler sprockets
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  7. 7
    Kit for idler sprocket
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  8. 8
    Idler sprocket
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.

Similar

  1. 1
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  2. 2
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $31.98
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  3. 3
    Directable rotary drive chain tensioner
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  4. 4
    Chain tensioner device
    Chain tensioner device
    Price:
    from $31.33
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  5. 5
    Chain tensioner device
    Chain tensioner device
    Price:
    from $35.10
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  6. 6
    Chain tensioner device
    Chain tensioner device
    Price:
    from $39.13
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  7. 7
    Chain tensioner device
    Chain tensioner device
    Price:
    from $41.08
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  8. 8
    Chain tensioner device
    Chain tensioner device
    Price:
    from $52.78
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  9. 9
    Chain tensioner device
    Chain tensioner device
    Price:
    from $54.73
    Light alloy body and lever and a idler sprocket.Inside the bases there are 4 rubber elastomers with high elastic memory.
  10. 10
    Chain tensioner device
    Chain tensioner device
    Price:
    from $28.60
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  11. 11
    Chain tensioner device
    Chain tensioner device
    Price:
    from $30.55
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  12. 12
    Chain tensioner device
    Chain tensioner device
    Price:
    from $28.60
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  13. 13
    Chain tensioner device
    Chain tensioner device
    Price:
    from $32.37
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  14. 14
    Chain tensioner device
    Chain tensioner device
    Price:
    from $34.45
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  15. 15
    Chain tensioner device
    Chain tensioner device
    Price:
    from $32.37
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  16. 16
    Chain tensioner device
    Chain tensioner device
    Price:
    from $36.40
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  17. 17
    Chain tensioner device
    Chain tensioner device
    Price:
    from $38.35
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  18. 18
    Chain tensioner device
    Chain tensioner device
    Price:
    from $36.40
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  19. 19
    Chain tensioner device
    Chain tensioner device
    Price:
    from $50.05
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  20. 20
    Chain tensioner device
    Chain tensioner device
    Price:
    from $52.00
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  21. 21
    Chain tensioner device
    Chain tensioner device
    Price:
    from $49.14
    Type RHR - RHB have light alloy body and lever and a sprocket. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the sprocket with double shielded bearings.
  22. 22
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.94
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  23. 23
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $32.89
    They have the body and the lever made of a special anti-seize plastic material type POM perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  24. 24
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $29.25
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  25. 25
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $32.76
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  26. 26
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $30.03
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  27. 27
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $43.68
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  28. 28
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $46.02
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  29. 29
    Arm chain tensioner
    Arm chain tensioner
    Price:
    from $43.68
    They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.
  30. 30
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $43.29
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  31. 31
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $45.37
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  32. 32
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $55.12
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  33. 33
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $57.20
    The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
  34. 34
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $41.08
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  35. 35
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $42.77
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  36. 36
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $39.26
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple.
  37. 37
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $53.69
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  38. 38
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $55.51
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. They can work with a temperature up to 130° C
  39. 39
    Rotary arm chain tensioner
    Rotary arm chain tensioner
    Price:
    from $51.48
    The type TRR1 and TRR2 have a light alloy body and galvanized steel lever and a idler sprocket. For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple.
  40. 40
    Arm inox chain tensioner
    Arm inox chain tensioner
    Price:
    from $94.64
    The automatic rotary tensioners TCR08 have the body and the lever made of a special anti-seize plastic material. Useful tensioning angle 60° in both sense of rotation, including the idler sprocket and bearings made stainless steel.

Datasheet

AUTOMATIC ROTATING AND ROTARY SPRING-ACTION TENSIONERS

TC automatic rotating / rotary tensioners make it possible to maintain the correct tension of the transmission chain or belt, thereby increasing its durability.

They automatically recover any slack in the chain or belt that may develop with use, preventing the appearance of vibrations, noise and breakage due to slack.

These automatic tensioners do not require any kind of upkeep and make it possible to save time on maintenance and management of the machinery on which they are installed.

The TC1 and TC2 models consist of a base and lever in special, very sturdy, antiseize aluminium with tensile strength of 440MPa, which ensures perfect glide of the lever and central fastening rod in high tensile strength galvanized steel.Elastic elements in steel with a very high yield point and initial preload are inserted in the tensioners, ensuring the most constant pressure range possible.. In addition, the specific mechanical properties of the material prevent wear on the elastic internal elements due to movement, so we are able to supply a product of absolute excellence in this field.

The TC05 models are the version in sturdy POM plastic material.

The TC08 models are the version completely food- approved, in plastic material colored with food-grade dyes and mechanical parts in AISI 316 stainless steel, with internal elastic elements in AISI 302.

All rotating TC tensioners are characterized, in particular, by the tensioning angle of over 45° in both directions of rotation.

They are easy to install, because they can be fastened to the machine either with screws from the inside or from the outside, with rear stop slots to block rotation on imperfect or irregular surfaces and reference notches for adjustment of the preload.

They can be supplied with chain tensioning shoes in polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient 0,06, chain tensioning pinions, belt tensioning rollers and idle pulleys.

A version can be produced for all models with central rod in AISI 316 stainless steel and internal elastic elements in AISI 302.
