IDLER SPROCKETS

Idler sprocket

3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9

SPROCKET:

Price:

from $5.59

In stock

New product

Brand - ZETASASSI®

Listing:

You Save:

(%)

Quantity	You Save
1 - 9
10 - 29	-5%
30 - 59	-10%
60	-15%

Request information by mail to ZETASASSI®
Idler sprocket | AC

$3\8"x7\32"(06B1) Z21 SIMPLE$

Code:

AC38S

SPROCKET: 3\8"x7\32"(06B1) Z21 SIMPLE

$5.59

9,808

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$3\8"x7\32"(06B2) Z21 DOUBLE$

Code:

AC38D

SPROCKET: 3\8"x7\32"(06B2) Z21 DOUBLE

$18.20

1,661

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$1\2"x5\16"(08B1) Z14 SIMPLE$

Code:

AC12SZ14

SPROCKET: 1\2"x5\16"(08B1) Z14 SIMPLE

$5.59

2,056

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$1\2"x5\16"(08B1) Z16 SIMPLE$

Code:

AC12S

SPROCKET: 1\2"x5\16"(08B1) Z16 SIMPLE

$5.85

5,335

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

AC12SZ18

SPROCKET: 1\2"x5\16"(08B1) Z18 SIMPLE

$6.37

3,518

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$1\2"x5\16"(08B2) Z16 DOUBLE$

Code:

AC12D

SPROCKET: 1\2"x5\16"(08B2) Z16 DOUBLE

$20.41

609

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$5\8"x3\8"(10B1) Z17 SIMPLE$

Code:

AC58S

SPROCKET: 5\8"x3\8"(10B1) Z17 SIMPLE

$7.67

5,282

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$5\8"x3\8"(10B2) Z17 DOUBLE$

Code:

AC58D

SPROCKET: 5\8"x3\8"(10B2) Z17 DOUBLE

$23.27

964

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$3\4"x7\16"(12B1) Z13 SIMPLE$

Code:

AC34SZ13

SPROCKET: 3\4"x7\16"(12B1) Z13 SIMPLE

$8.19

2,651

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$3\4"x7\16"(12B1) Z15 SIMPLE$

Code:

AC34S

SPROCKET: 3\4"x7\16"(12B1) Z15 SIMPLE

$8.58

7,297

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$3\4"x7\16"(12B2) Z15 DOUBLE$

Code:

AC34D

SPROCKET: 3\4"x7\16"(12B2) Z15 DOUBLE

$29.12

1,557

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$1"X17m\m(16B1) Z12 SIMPLE$

Code:

AC1S

SPROCKET: 1"X17m\m(16B1) Z12 SIMPLE

$11.83

2,827

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

$1"¼ x 3\4"(20B1) Z9 SIMPLE$

Code:

AC114S

SPROCKET: 1"¼ x 3\4"(20B1) Z9 SIMPLE

$29.12

337

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

AC112S

SPROCKET: 1"½ X 1"(24B1) Z9 SIMPLE

$40.04

526

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

AC134S

SPROCKET: 1"¾ X 1"¼(28B1) Z9 SIMPLE

$61.88

230

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Description

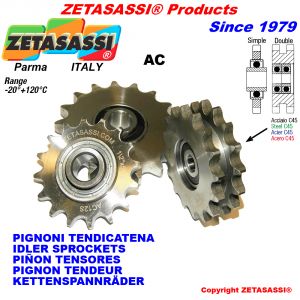

Chain idler sprockets type AC

For simple or double chain

For simple chain :

There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.

The simple chain sprocket has the bearing ring “lengthened” to make easy the set up on special machinery.

In our catalogue there is the KIT for AC type that includes a screw and a galvanized steel spacer .

The careful processing and the steady set up of the bearing allow the product to better resist to loads and wear.

For double chain

The AC type is made of a double sprocket that in the centre has 2 double shielding bearings. They are not 2 simple sprockets put together as for the most part of this item that you can find on the market. ( as our type RD). By this way it can better resist to loads and wear compared to the commercial ones.

3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14

5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13

1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9

1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9

3/8"x7/32"(06B2) z21 1/2"x5/16"(08B2) z16

5/8"x3/8"(10B2) z17 3/4"x7/16"(12B2) z15

N.B. They are available without screws and bolts.

It is possible to get types not included in our catalogue.

On demand we have available also zinc coated types.

CATALOGUE PAGE
