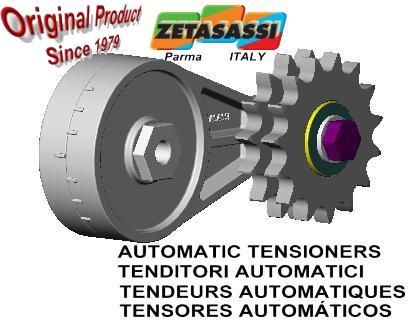

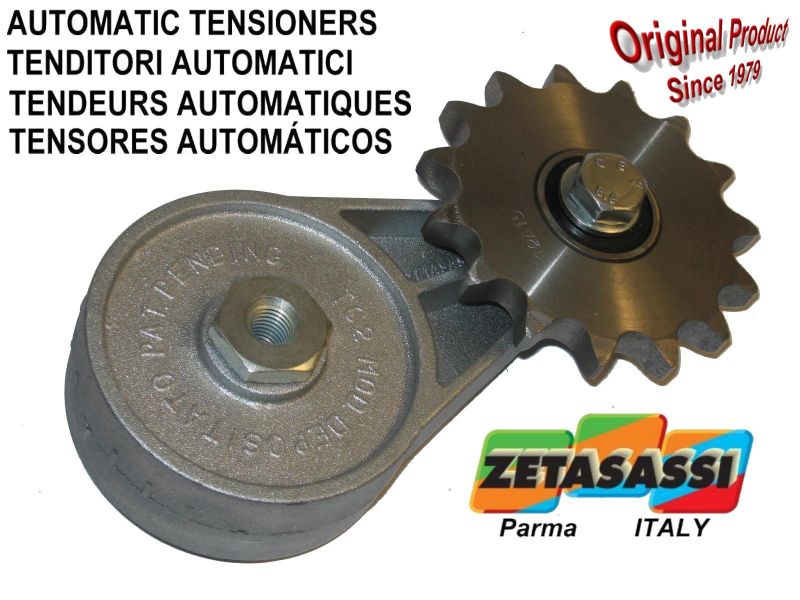

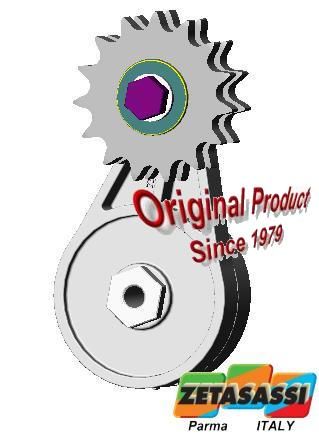

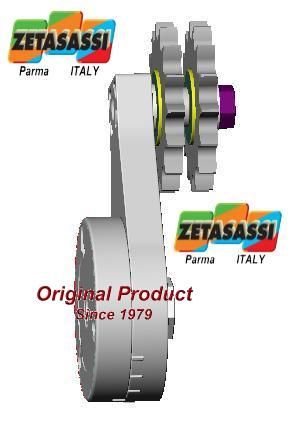

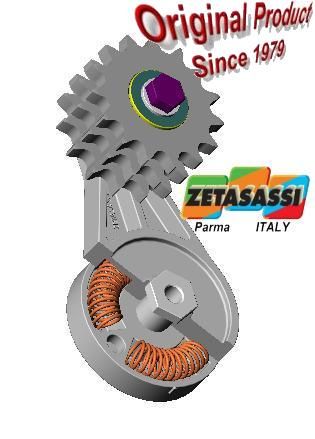

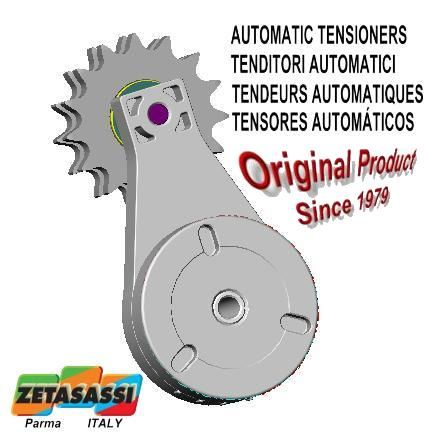

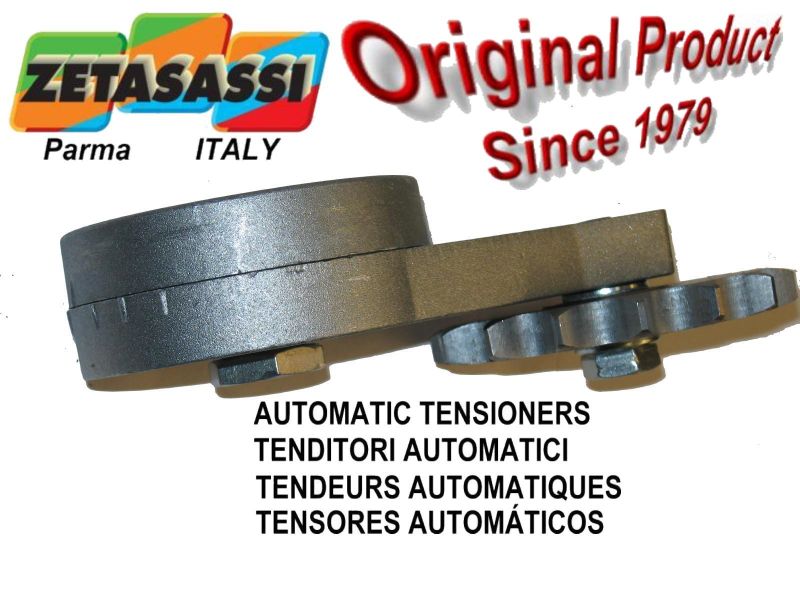

Arm chain tensioner

They have the body and the lever made of a special anti-seize light alloy perfect for this use.They include a idler sprocket with double shielded bearings bearing of various sizes.

NEWTON:

SPROCKET:

Price:

from $43.68

In stock

New product

Brand - ZETASASSI®

Listing:

You Save:

(%)

Quantity	You Save
1 - 9
10 - 29	-5%
30 - 59	-10%
60	-15%

Request information by mail to ZETASASSI®
Arm chain tensioner | TCR2RSRDRT

Code:

TCR2RS38

NEWTON: 120-500

SPROCKET: 3\8"x7\32"(06B1) Z15 SIMPLE

$43.68

424

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD38

NEWTON: 120-500

SPROCKET: 3\8"x7\32"(06B2) Z15 DOUBLE

$51.87

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RT38

NEWTON: 120-500

SPROCKET: 3\8"x7\32"(06B3) Z15 TRIPLE

$60.06

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RS12

NEWTON: 120-500

SPROCKET: 1\2"x5\16"(08B1) Z15 SIMPLE

$44.59

424

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD12

NEWTON: 120-500

SPROCKET: 1\2"x5\16"(08B2) Z15 DOUBLE

$53.69

424

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RT12

NEWTON: 120-500

SPROCKET: 1\2"x5\16"(08B3) Z15 TRIPLE

$62.79

424

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RS58

NEWTON: 120-500

SPROCKET: 5\8"x3\8"(10B1) Z15 SIMPLE

$46.02

912

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD58

NEWTON: 120-500

SPROCKET: 5\8"x3\8"(10B2) Z15 DOUBLE

$56.55

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RT58

NEWTON: 120-500

SPROCKET: 5\8"x3\8"(10B3) Z15 TRIPLE

$67.21

722

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RS34

NEWTON: 120-500

SPROCKET: 3\4"x7\16"(12B1) Z15 SIMPLE

$48.23

912

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD34

NEWTON: 120-500

SPROCKET: 3\4"x7\16"(12B2) Z15 DOUBLE

$60.97

757

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RT34

NEWTON: 120-500

SPROCKET: 3\4"x7\16"(12B3) Z15 TRIPLE

$73.71

557

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RS1

NEWTON: 120-500

SPROCKET: 1"X17m\m(16B1) Z13 SIMPLE

$57.33

912

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD1

NEWTON: 120-500

SPROCKET: 1"X17m\m(16B2) Z12 DOUBLE

$65.65

912

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RT1

NEWTON: 120-500

SPROCKET: 1"X17m\m(16B3) Z12 TRIPLE

$80.86

678

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD114

NEWTON: 120-500

SPROCKET: 1"¼ x 3\4"(20B2) Z9 DOUBLE

$100.23

176

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD112

NEWTON: 120-500

SPROCKET: 1"½ X 1"(24B2) Z9 DOUBLE

$122.07

263

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

TCR2RD134

NEWTON: 120-500

SPROCKET: 1"¾ X 1"¼(28B2) Z9 DOUBLE

$165.75

115

16 November

pdf-- step-- sat-- x_t-- dwg-- dxf

Description

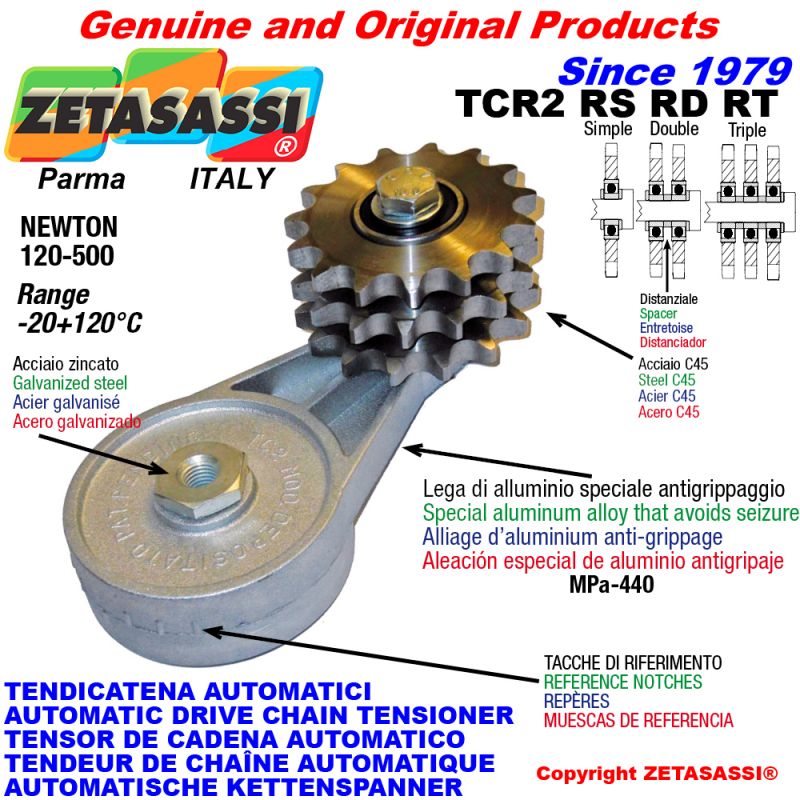

TCR2 with idler sprocket RS RD RT, automatic device rotating spring-action chain arm tensioners consisting of a base and lever in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa.Tensioning angle 45° in both directions of rotation.Equipped with idle chain tensioner pinion and double shielded bearings model RS RD RT.

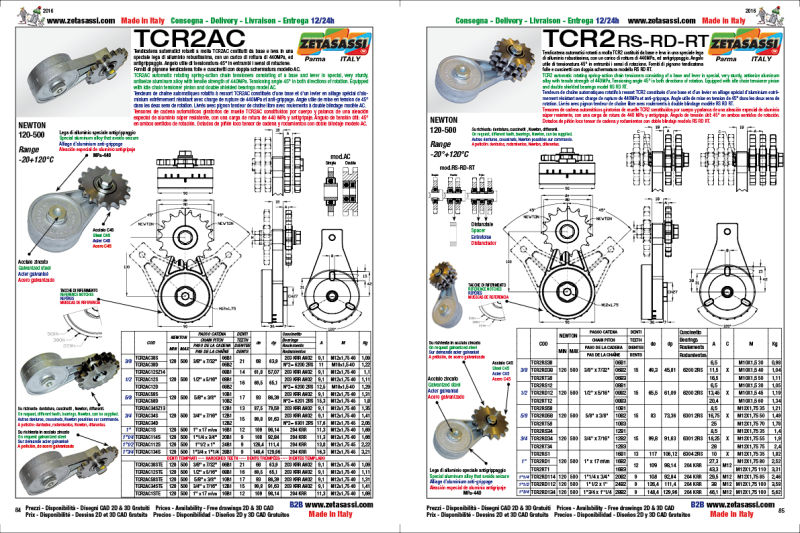

CATALOGUE PAGE
