IDLER SPROCKETS

Idler sprocket bracket

They support simple and double chain sprockets and are available with the sprocket set up. They are economic, strong and easy to be set up so you can avoid other solutions

TYPE:

SPROCKET:

Price:

from $28.34

In stock

New product

Brand - ZETASASSI®

Listing:

You Save:

(%)

Quantity	You Save
1 - 9
10 - 29	-5%
30 - 59	-10%
60	-15%

Request information by mail to ZETASASSI®
Idler sprocket bracket | HR

Code:

HR138S

TYPE: 1

SPROCKET: 3\8"x7\32"(06B1) Z21 SIMPLE

$28.34

321

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR138D

TYPE: 1

SPROCKET: 3\8"x7\32"(06B2) Z21 DOUBLE

$39.52

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR112SZ14

TYPE: 1

SPROCKET: 1\2"x5\16"(08B1) Z14 SIMPLE

$28.34

321

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR112S

TYPE: 1

SPROCKET: 1\2"x5\16"(08B1) Z16 SIMPLE

$28.60

321

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR112D

TYPE: 1

SPROCKET: 1\2"x5\16"(08B2) Z16 DOUBLE

$41.73

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR258S

TYPE: 2

SPROCKET: 5\8"x3\8"(10B1) Z17 SIMPLE

$34.45

432

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR258D

TYPE: 2

SPROCKET: 5\8"x3\8"(10B2) Z17 DOUBLE

$48.75

214

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR234SZ13

TYPE: 2

SPROCKET: 3\4"x7\16"(12B1) Z13 SIMPLE

$34.97

432

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR234S

TYPE: 2

SPROCKET: 3\4"x7\16"(12B1) Z15 SIMPLE

$35.36

432

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR234D

TYPE: 2

SPROCKET: 3\4"x7\16"(12B2) Z15 DOUBLE

$54.60

214

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR31S

TYPE: 3

SPROCKET: 1"X17m\m(16B1) Z12 SIMPLE

$44.20

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Code:

HR3114S

TYPE: 3

SPROCKET: 1"¼ x 3\4"(20B1) Z9 SIMPLE

$61.49

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

Description

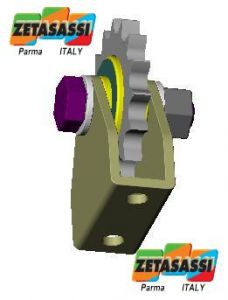

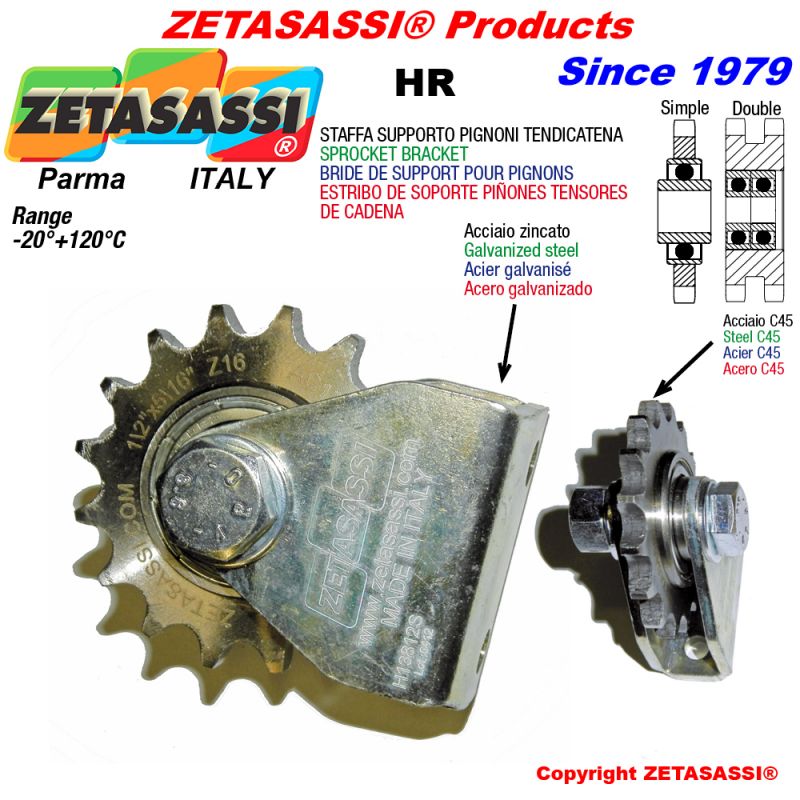

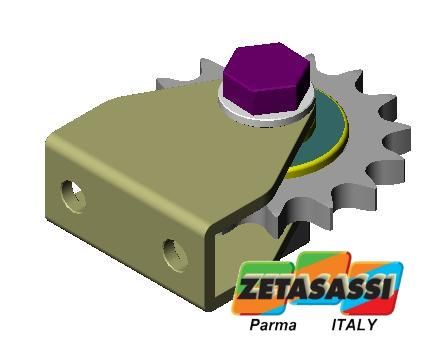

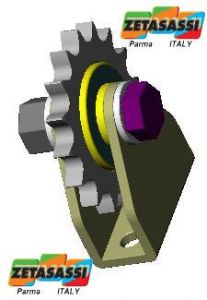

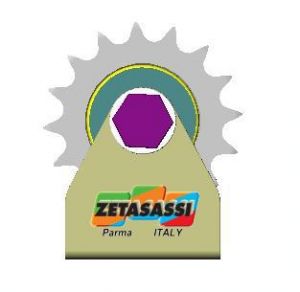

IDLER SPROCKET BRACKET

They support simple and double chain sprockets and are available with the sprocket set up.

They are economic, strong and easy to be set up so you can avoid other solutions .

This new bracket can be used in many applications and your can find it in our linear automatic chain tensioners type ETH and ETHR.

The shape avoids any type of twisting so the sprocket keeps its position. The sprocket itself and the chain last longer. By this way you can avoid extra maintenance linked to overloads or failures that can cause a pulley shift and damages to the machinery.

They are made of zinc-coated steel and on demand they can be sold separately and made of stainless steel.

The type HRTE has hardened teeth sprockets and it is only for simple chain.

3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14

5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13

1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9

3/8"x7/32"(06B2) z21 1/2"x5/16"(08B2) z16

5/8"x3/8"(10B2) z17 3/4"x7/16"(12B2) z15

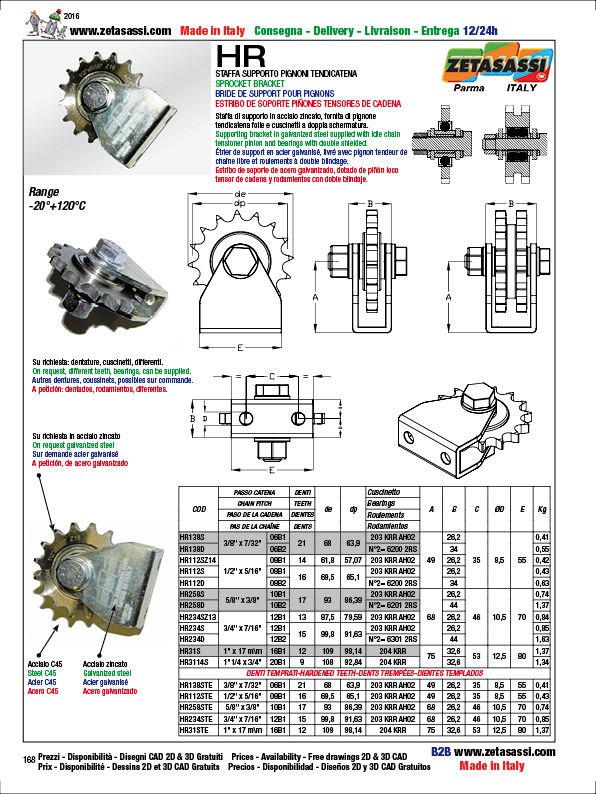

CATALOGUE PAGE
