Description

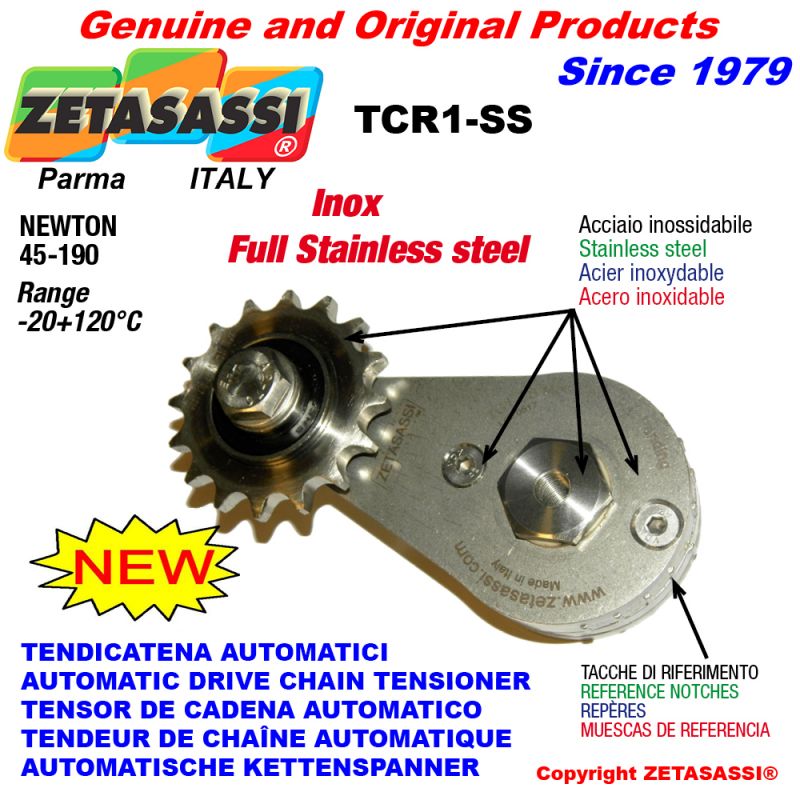

TCR1-SS automatic rotary spring-action tensioners for the food industry, completely in stainless steel has the base and lever machined from solid AISI 304, bushings in plastic material food-grade for rod glide and all mechanical parts and fasteners in AISI 304/316, spring in AISI 302. Tensioning angle 60° in both directions of rotation. Equipped with idle chain tensioner pinion and double shielded bearings in stainless steel.
Accessories
-
1Price:from $35.513/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
-
2Price:from $3.72KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
Similar
-
1Price:from $241.00TENSIONER TC1-SS ALIMENTARY - Stainless steel AISI 302 springs - Stainless steel AISI 316/304 parts
-
2Price:from $139.78TO1 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
3Price:from $140.71TO1 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
4Price:from $203.89TO2 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
5Price:from $204.95TO2 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
6Price:from $267.33TO3 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
7Price:from $269.06TO3 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
8Price:from $150.02TA1 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
9Price:from $210.54TA2 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
10Price:from $271.45TA3 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
11Price:from $151.75TA1 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
12Price:from $213.20TA2 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
13Price:from $274.78TA3 SS automatic linear spring-action chain tensioners, completely in stainless steel + PTFE bushes.
-
14Price:$167.18ETL1-SS automatic linear spring-action tensioners, completely in stainless steel + PTFE bushes.
-
15Price:$239.40ETL2-SS automatic linear spring-action tensioners, completely in stainless steel + PTFE bushes.
-
16Price:$289.01ETL3-SS automatic linear spring-action tensioners, completely in stainless steel + PTFE bushes.
-
17Price:from $208.15ETLR1 SS automatic linear spring-action chain tensioners, completely in stainless steel.The head is equipped with an idle chain tensioning pinion with double-shielded bearings, model ACINOX.
-
18Price:from $280.36ETLR2 SS automatic linear spring-action chain tensioners, completely in stainless steel.The head is equipped with an idle chain tensioning pinion with double-shielded bearings, model ACINOX.
-
19Price:from $329.97ETLR3 SS automatic linear spring-action chain tensioners, completely in stainless steel.The head is equipped with an idle chain tensioning pinion with double-shielded bearings, model ACINOX.
-
20Price:$142.84ETBASE SS automatic linear spring-action chain tensioners, completely in stainless steel.
-
21Price:$207.08ETBASE SS automatic linear spring-action chain tensioners, completely in stainless steel.
-
22Price:$262.41ETBASE SS automatic linear spring-action chain tensioners, completely in stainless steel.
Datasheet
AUTOMATIC CHAIN AND BELT TENSIONERS
ROTARY TENSIONERS
Our TC series belt and chain tensioners and rotary tensioners were designed in 1979 and patented in 1981. We were the first in the world to manufacture rotating chain tensioners using coil springs, third in the world and first in Italy to manufacture and design automatic tensioners in general.
Starting with a central, hexagonal 24 m/m central bush, using technological advances to resolve problems caused by temperature, dirt, humidity and condensation which interfered with the good rotation of the lever, we starting using an anti-seize mixture composed of alloys, not only light alloy, which allowed us to eliminate the bush and increase the dimensions of the central bolt. This also increases the rotation degrees of the lever and gives rise to a product of excellence in its field, particularly through the very high quality control we achieve by machining all details using our own CNCs.
Please note that the TC model rotary tensioners are pre-greased, but in some cases, where there is a need due to dust, concrete, dust, flour, sugar, moisture, humidity, high temperature, etc. we have created a model equipped with a greaser so that the tensioners can be greased during normal machine maintenance.
The heart of a machine is its transmission; to protect it, we offer the best quality Made in Italy products.
If you would like further information about our products, please contact us and we will be pleased to advise you on the right product to suit your applications.
