Arm tensioner

They have the body and the lever made of a special anti-seize plastic material POM. Useful tensioning angle 75° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 60°C.
Price:
from $16.51


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®

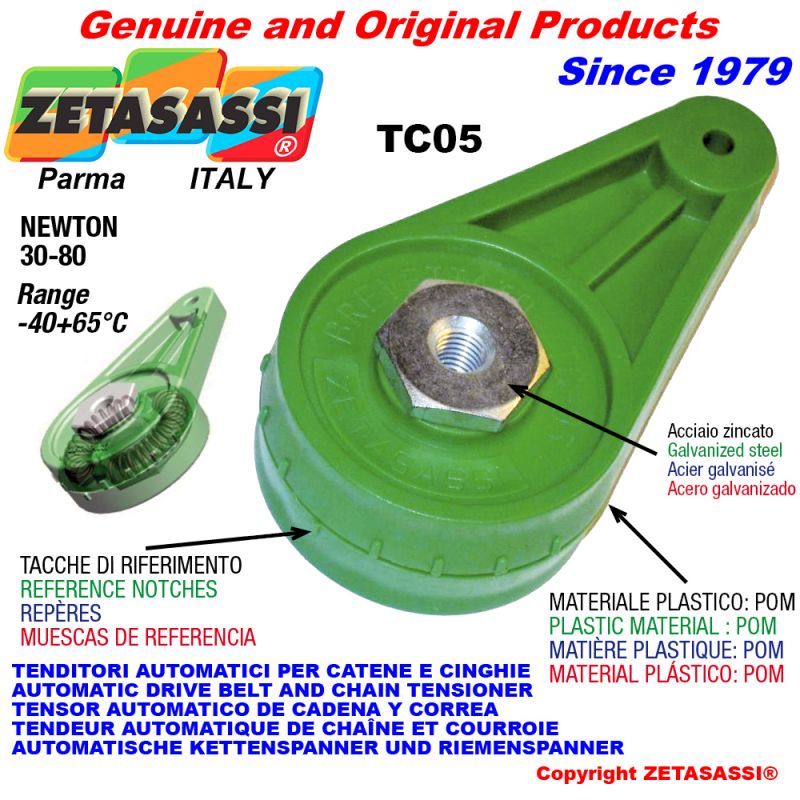

Arm tensioner | TC05
Code
NEWTON
HOLE
Price

Stock

Delivery

Quantity
Download-cad

TC05

30-80
Ø 6,5 m\m
$16.51

3,197

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

TC0585

30-80
Ø 8,5 m\m
$19.11

3,293

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

TC05105

30-80
Ø 10,5 m\m
$19.11

3,201

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

TC05125

30-80
Ø 12,5 m\m
$19.11

3,201

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

TC05M8

30-80
M8 X 1,25 m\m
$19.11

3,259

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

TC05M10

30-80
M10 X 1,5 m\m
$20.93

3,248

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf

TC05M12

30-80
M12 X 1,75 m\m
$20.93

3,281

22 December

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

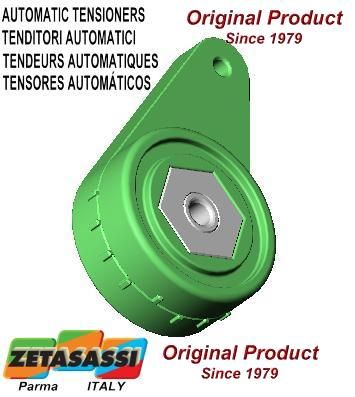

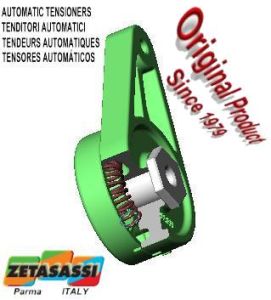

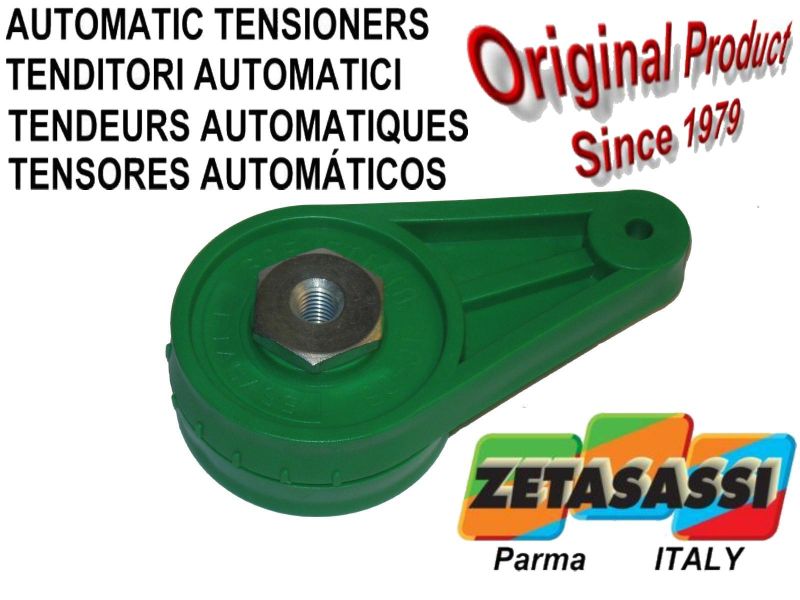

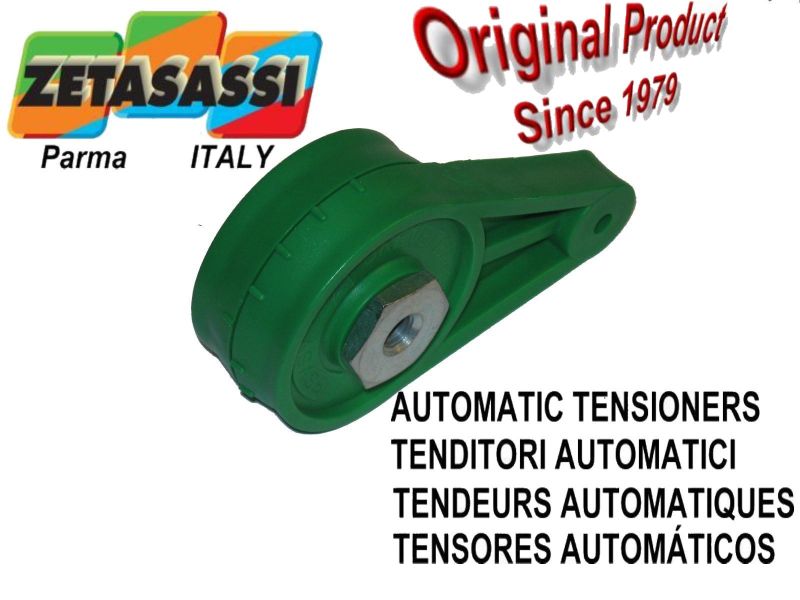

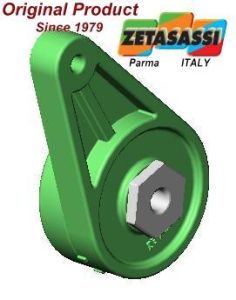

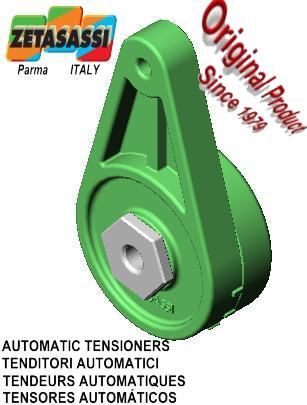

TC05 with hole or threaded bore, rotating spring-action arm tensioners consisting of a base and lever in POM plastic material.Tensioning angle 75° in both directions of rotation.

CATALOGUE PAGE

Accessories

  1. 1
    Idler rollers steel-aluminium-nylon
    Price:
    from $11.44
    Our IDLER ROLLERS PU can be made of Aluminium, Zinc Coated Steel and plastic material type PA6. Ø30 L 35 - Ø40 L45 – Ø40 L 50 – Ø50 L 50 - Ø50 L65 – Ø60 L60 – Ø60 L90 – Ø80 L80- Ø80 L90.
  2. 2
    Rim pulley with bearings
    Price:
    from $17.68
    type PUG rim pulley ( A) made of PA6 plastic material with double shielding bearing , protection caps and on demand you can get them in Aluminium, in Zinc-Coated Steel or Stainless Steel , various sizes and type of rim.
  3. 3
    Chain slider
    Price:
    from $5.46
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  4. 4
    Chain slider
    Price:
    from $6.37
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  5. 5
    Brackets for tc & tr rotary tensioners
    Price:
    from $8.71
    Supporting brackets in galvanized steel for rotating spring-action tensioners model TC and TR.
  6. 6
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  7. 7
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  8. 8
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  9. 9
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.

Similar

  1. 1
    Directable rotary tensioner
    Price:
    from $18.20
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
  2. 2
    Arm belt tensioner
    Price:
    from $32.37
    Body and the lever made of a special anti-seize plastic material POM.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 75° in both sense of rotation.
  3. 3
    Arm belt tensioner
    Price:
    from $38.61
    Body and the lever made of a special anti-seize plastic material POM.They include a rim pulley with double shielded bearings bearings. Useful tensioning angle 75° in both sense of rotation.
  4. 4
    Arm tensioner
    Price:
    from $21.32
    They have the body and the lever made of a special anti-seize light alloy perfect for this use. Useful tensioning angle 60° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 130°C.
  5. 5
    Arm tensioner
    Price:
    from $33.54
    They have the body and the lever made of a special anti-seize light alloy perfect for this use. Useful tensioning angle 45° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 130°C.
  6. 6
    Arm chain tensioner
    Price:
    from $28.21
    Plastic material POM body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 75° in both sense of rotation
  7. 7
    Arm chain tensioner
    Price:
    from $29.12
    Plastic material POM body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 75° in both sense of rotation
  8. 8
    Rotary arm tensioner
    Price:
    from $20.02
    The type TR1 and TR2 have a light alloy body and galvanized steel lever/arm.TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
  9. 9
    Rotary arm tensioner
    Price:
    from $28.08
    The type TR1 and TR2 have a light alloy body and galvanized steel lever/arm.TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
  10. 10
    Inox arm tensioner
    Price:
    from $50.96
    TENSIONER TC08 INOX ALIMENTARY - Stainless steel AISI 302 springs - Stainless steel AISI 316 locking parts - Plastic material 100% alimentary - 100% food colour
  11. 11
    Arm inox chain tensioner
    Price:
    from $94.64
    The automatic rotary tensioners TCR08 have the body and the lever made of a special anti-seize plastic material. Useful tensioning angle 60° in both sense of rotation, including the idler sprocket and bearings made stainless steel.

Datasheet

ROTATING / ROTARY SPRING-ACTION TENSIONERS – CHAIN TENSIONERS – AUTOMATIC BELT TENSIONERS

Our rotary TC model tensioners, belt tensioners and chain tensioners were developed in 1979, patented in 1981, and we are the first producers worldwide to construct the rotary chain tensioner using helical springs, third in the world and first in Italy in the construction and design of automatic tensioners in general.

Initially designed with central hexagonal 24 mm bushing, thanks to improved technology and also to resolve the problems we encountered initially due to high temperatures, dirt, moisture and the condensation caused by it which interfered with proper rotation of the lever, we moved from the classical aluminium alloy with tensile strength of 240MPa to a particular antiseize compound that is very sturdy and has a tensile strength of 440MPa, composed of not only light alloys, that enabled us to eliminate the bushing and increase the size of the central rod. This also made it possible to increase the degrees of rotation of the lever, ensure greater strength and longer-lasting performance thanks to the mechanical specifications of the material, also preventing wear of the elastic internal elements due to movement, and to obtain, all-in-all, a product of absolute excellence in this field.

Thanks to the fact that we machine all the parts in-house with our CNC equipment, we have a very high level of quality control.

We would remind you that our TC model rotary tensioners are pre-lubricated. However, in some cases where there is the need, due to the presence of powders, cement, earth, flour, sugar, moisture, condensation, high temperatures, etc., we have created a model with grease gun so that the tensioners can be greased during normal machine maintenance.

The heart of the machine is its transmission, and we take care of it with the best products and quality Made in Italy.

For any other information you may need regarding our products, don’t hesitate to contact us. We’ll be able to indicate the right product for your needs.
