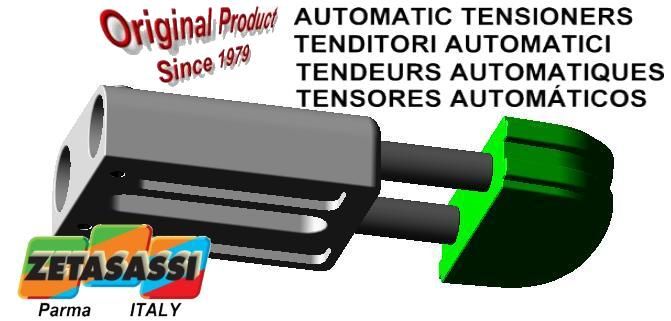

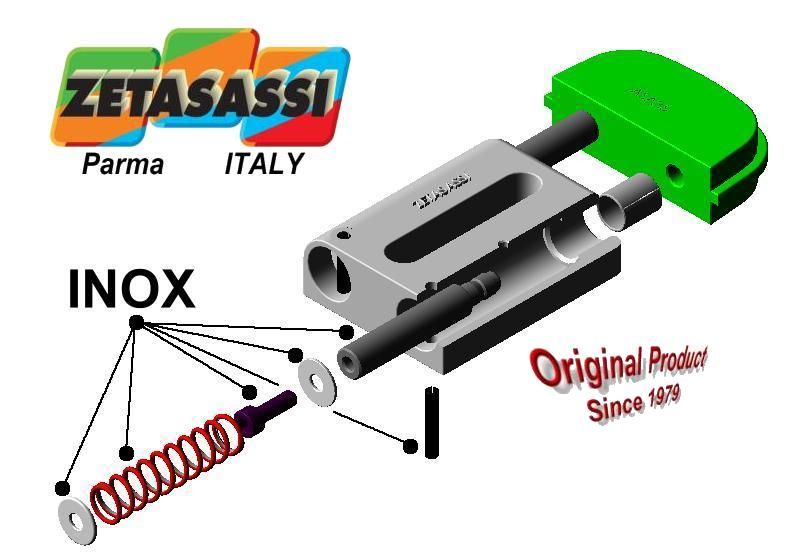

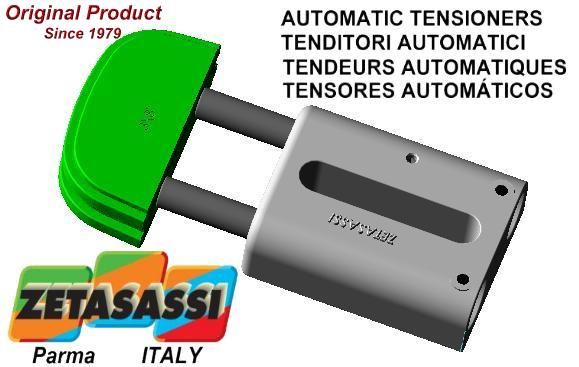

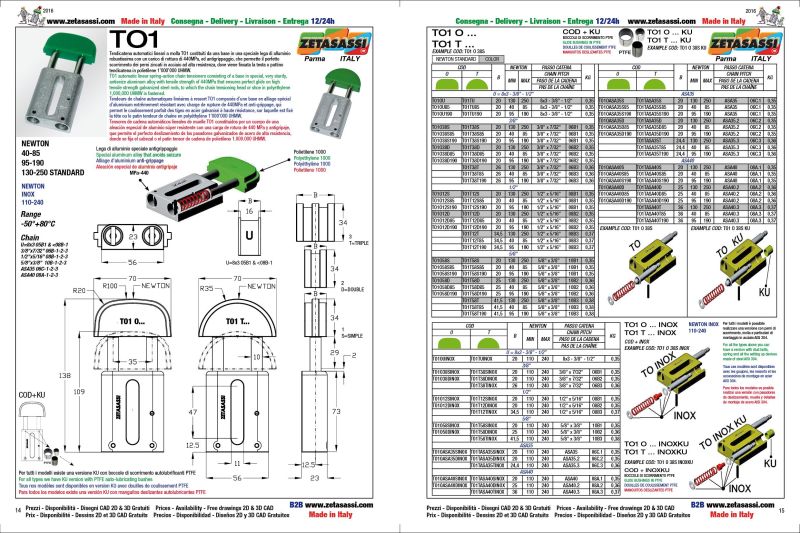

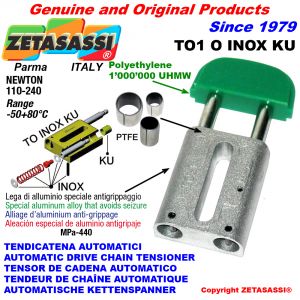

TO1INOXKU oval head (PTFE bushes), automatic device linear spring-action drive chain tensioners consisting of a base in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa that ensures perfect glide on high tensile strength stainless steel rods, to which the chain tensioning head or shoe in polyethylene 1,000,000 UHMW is fastened.
Newton110:240
Tensioners are devices that serve to take up any slack and maintain the correct tension of the transmission. They may be automatic or fixed, linear or rotary; in all cases, however, they are adjustable. The automatic mechanisms may consist of springs or rubber elastomers.The purpose of the tightener, in addition to picking up the slack in the transmission, is to prevent vibrations, noise and possible breakage of the transmissions. The advantages of its use include: absence of maintenance, better transmission performance, less wear of parts and thus longer lasting transmissions.
All this makes the use of tensioners advantages from the technical as well as from the economical standpoint.
The bases of our tensions may be constructed in a range of materials: plastic, aluminium, aluminium alloys, in some cases completely machined from solid blocks also in AISI 304L/316L, or to customers’ requests in any type of material.
The compound we use the most in die-casting is a special alloy of aluminium that is extremely sturdy, with antiseize properties. It actually boasts a tensile strength of 440MPa, while most aluminium compounds have tensile strength around 240 MPa; if we consider that the iron most widely and commonly used is FE360, which has a tensile strength of 360MPa, we can say that our alloy is ideal for this type of application, and is decisive above all for the long life of the product in any situation …
All our materials are machined directly in our workshop using numerical control machines.
Tensioners can also be used as pressing units, shock absorbers, stabilizers and regulator/tensioners of rollers for belts, etc…

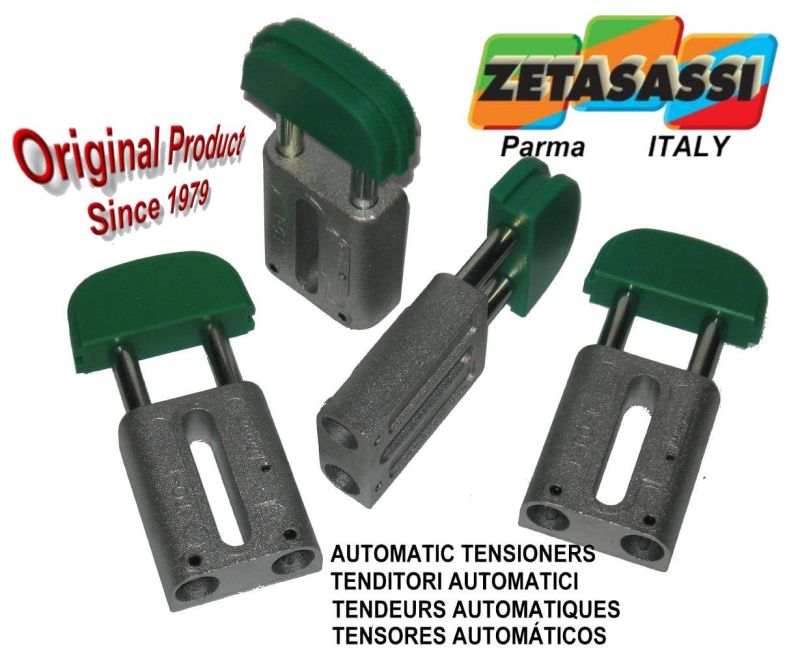

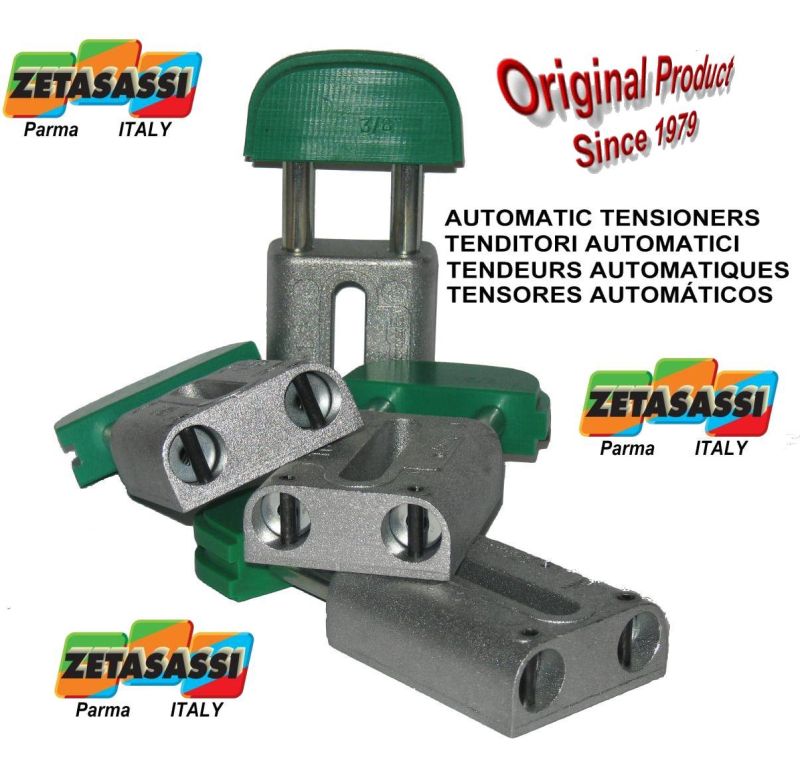

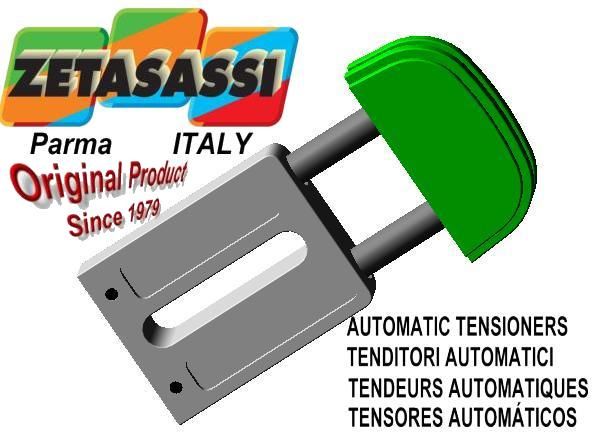

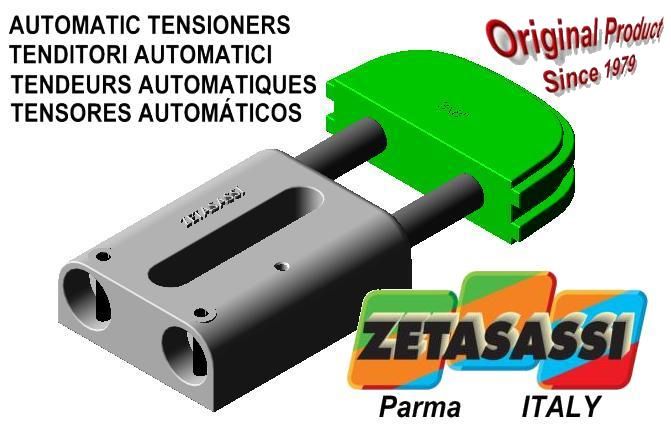

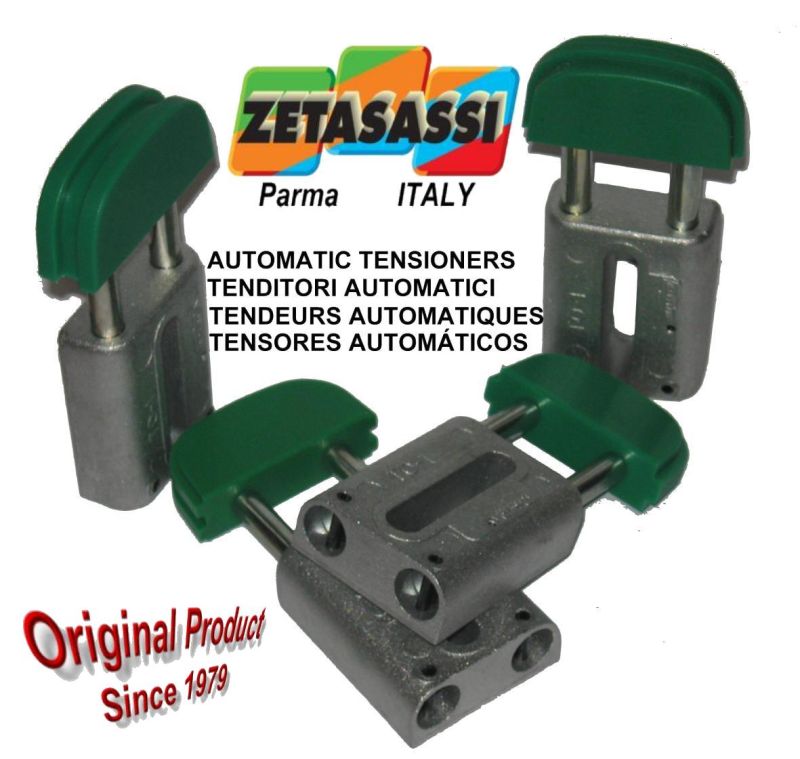

AUTOMATIC CHAIN AND BELT TENSIONERS
LINEAR - AXIAL
Our TO, TA and ET series of linear tensioners were designed in 1979 and patented in 1981. We were the first in the world to manufacture linear chain tensioners which used bolts, third in the world and first in Italy to manufacture and design automatic tensioners in general.
Initially designed with an aluminium body equipped with bushes for the bolts, they were then modified using die cast technology. In fact, there is no longer the need to use sliding bushes. The bodies are made of a special mixture of alloys, not only light alloys.
This alloy is heavier thus giving a more robust structure which can better withstand temperatures, creating as little displacement as possible from its tolerances. They are also anti-seize so that internal bolts can slide perfectly; in fact, the clearance in the bolts is reduced to 0,05:0,13 m/m and all our castings are machined using our own CNCs.

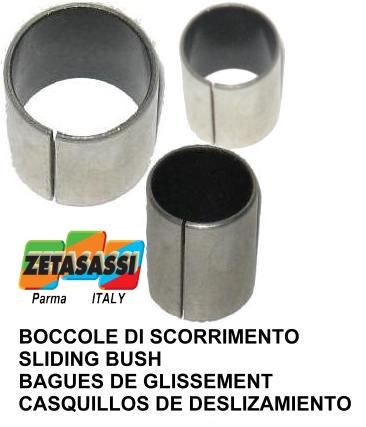

These tensioners are also available in a KU version with self-lubricating sliding bushes; the bodies are made of light alloy and not purely aluminium. We have learnt from experience that aluminium has some displacement due to temperature changes which can, in time, lead to problems with the tolerances of the bushes themselves. We have assured the mechanical hold of the bushes by using this mixture together with specific manufacturing techniques using our CNC machinery. The clearance of the bolts falls between 0,02:0,05 m/m.
Why and when to use these bushes?
They are used very rarely; usually in belt tensioners where the belts turn at high speed and there is the need to dampen frequencies on return or long sections, for example, printing machines, etc.
Or when there is the need to mount an automatic tensioner in a position which is difficult to access by the operator.
Note that in all cases of sliding bolts, a minimum amount of grease needs to be applied, either before mounting or after pro-loading, just as the bolts need to be greased over the life of the machine during its normal maintenance.
In most cases, it is better to use the model without the bushes which we recommend. In fact, where there is a need to quickly retrieve the pre-load point (for example, the start of a transmission without a deceleration or acceleration ramp) where the automatic tensioner must be able to quickly retrieve the starting point, and sliding bushes, which decrease clearance on the bolts, are not always the right choice…
Or, it may not be opportune to use them where there is too much moisture or the formation of condensation; in this case we suggest you look at our NT model.
Our NT series automatic chain tensioner was designed in around 2000 and patented in 2001.
It was designed to meet the requirement for a completely closed automatic chain tensioner, to prevent infiltrations (dust from cement, ceramics, dust, sugar, flour, etc.).
Given the experience gained from our earlier models and to maintain sustainable production costs, we designed the product in aluminium and the self-lubricating sliding bushes in plastic, thus allowing the aluminium of the body to displace depending on the temperature but not to affect the sliding action of the bolts. In fact, the bushes are blocked for interference and also have a specifically-designed locking pin so as not to lose tolerances (we know that plastic materials move through humidity present in the air). The clearance on the pins is between 0,06:0,16 m/m.
The heart of a machine is its transmission; to protect it, we offer the best quality Made in Italy products.
If you would like further information about our products, please contact us and we will be pleased to advise you on the right product to suit your applications.
